Wavelet 2 Processor / DAC / Preamp Legacy Audio

Analog Inputs:
Two pair Stereo balanced XLR inputs
Two pair Stereo unbalanced RCA inputs
One Measurement microphone XLR input

Digital Inputs:
USB audio, 32 bit, 44.1 – 384 kHz
AES/EBU & SPDIF, 24 bit, 192kHz
TosLink, 24 bit 96kHz

Analog Outputs:
8 balanced output channels on 8 XLR connectors. 0 dBFS*1 = 8 dBV*2 , 33 Ohm output impedance
8 unbalanced output channels on 8 RCA connectors. 0 dBFS*1 = 8 dBV*2, 33 Ohm output impedance.

Analog Input Adjustments:
Balanced input sensitivity without attenuation 0 dBFS*1 = 1 dBV*2, input impedance 20 kOhm
Unbalanced input sensitivity without attenuation 0 dBFS*1 = 1 dBV*2, input impedance 100 kOhm
Analog attenuation available in three steps of -3 dB, -6 dB and -12 dB for an input sensitivity of 0 dBFS = 4 dBV, 7 dBV or 12dBV respectively

Processor:
Analog Devices, Internal processing sample rate 192kHz, bit depth 64 bits

Measurement Microphone:
Included

Control Interface:
Legacy Wavelet app, included. Running on iOS, Android, iPad, Mac or PC device.

Control Connections:
Wi-Fi or Ethernet CAT5/CAT6 connection

Dimensions (HxWxD, inches):
4.125 x 17.5 x 12

Weight:
13.5 lbs

Introducing the Legacy Wavelet 2, a powerful audio processor that addresses the imperfections and resonances of your listening environment. With advanced room analysis and correction capabilities, the Wavelet 2 reduces resonant energy and enhances tonal balance and pitch definition for an improved listening experience.

If you already have a preferred DAC or enjoy analog sources like vinyl, the Wavelet 2 offers balanced XLR and unbalanced RCA inputs, ensuring high-quality analog integration without digital artifacts. An apodizing circuit corrects pre-ringing artifacts, while the Wavelet 2 processes audio at an impressive 64-bit depth for unparalleled resolution.

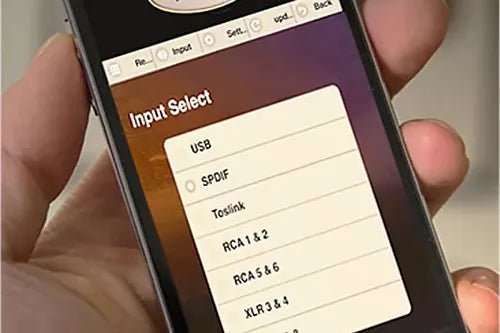

The Wavelet 2 is designed to be upgradable, allowing for firmware updates directly from the unit. It is easy to set up and control via the included App, compatible with iPad, iPhone, Android, and other smart devices. The package includes a precision-calibrated microphone and a Wi-Fi adapter for wireless operation.

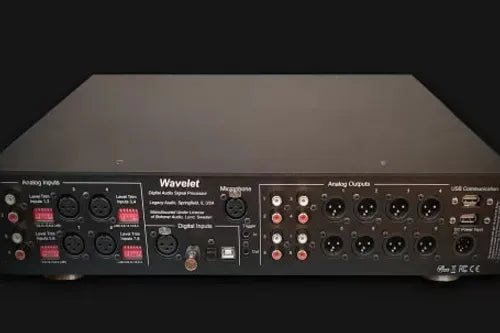

With multiple analog and digital inputs, eight balanced and eight unbalanced outputs, and various communication options, the Wavelet 2 seamlessly integrates into any audio system. Experience perfect timing and natural decay of all frequencies with the Legacy Wavelet 2, unlocking the true potential of your audio setup.

• Download the Wavelet II Processor Manual Here
