V System From Legacy Audio

• Application: DSP Based ultra-dynamic system with unprecedented room adaptability
• Processor: Wavelet 2 input, 8 output, 56 bit DSP, Room Correction/Stereo Unfold algorithm
• System Type: 8 driver system with 4 channel DSP crossover
• Tweeter: Dual 4" AMT Ribbons configured in post convergent array
• Midrange: Dual 6" curvilinear with phase plug configured in dipolar array
• Midwoofer: Dual 14" Carbon/pulp, neodymium motor, cast frame, dipolar pattern
• Bass: 12" ultra-linear bass driver, 15 lb motor structure
• Subwoofer: 12" Aluminum diaphragm, 480 oz motor structure, cast frame, 3" dual 4 layer voice coil
• Passive Radiator: (3) 10" Mass loaded pneumatic
• Low Frequency Alignment: Compound B6, B2 handing up to dipole

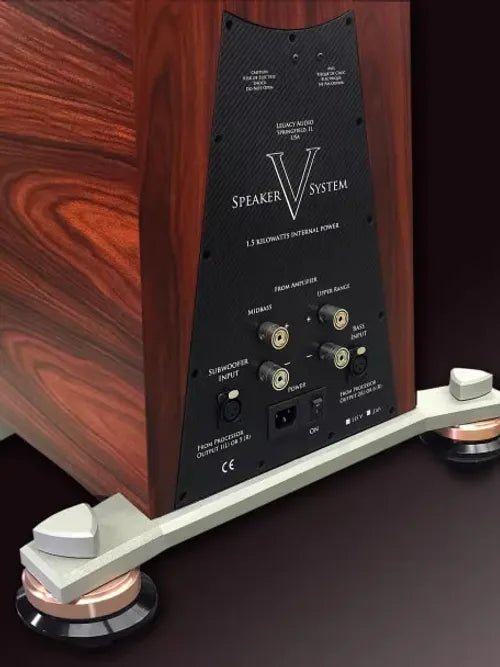

• Inputs: 2 pair binding posts for Midbass and Upper Range, 2 XLR balanced for Sub & Bass
• Internal Amplification: ICE powered Subwoofer 1000w, Bass 500w
• Recommended Amplification: 2 external channels of 30w or greater required. Sub & Bass sections are driven with a total of 1500w of internal Power
• Freq. Response (Hz, +/-2dB): 16Hz-30kHz
• Impedance: 4 ohm upper range/ 10k Amp Input
• Sensitivity: 98 dB (2.83 Volts@1m)
• Crossover (Hz): 80 Hz, 400 Hz, 3kHz
• Cabinet Dimensions HxWxD (inches): 72 x 18.75 x 19
• Weight: 231 Ibs each
• Shipping Weight: 362 lbs each

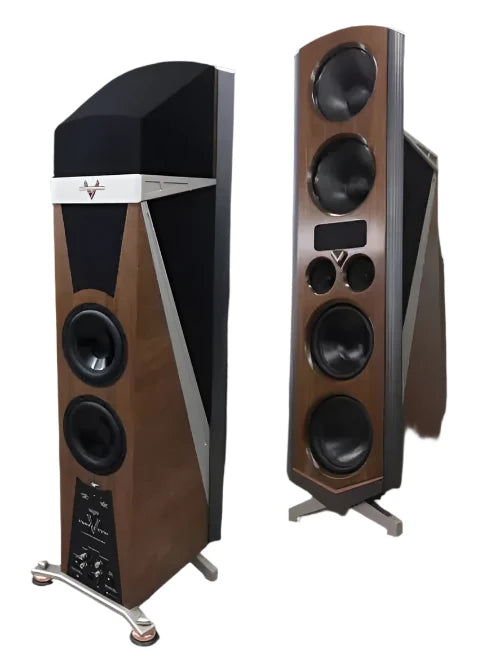

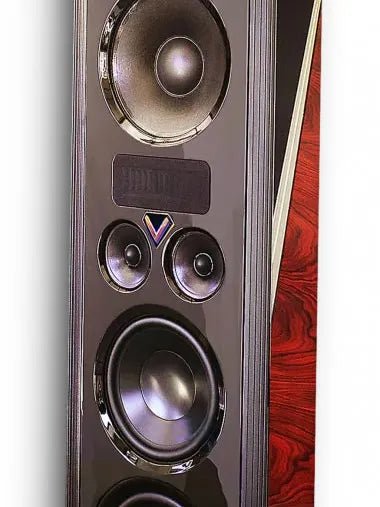

Experience audio perfection with the Legacy V speaker system. It's the first to feature dual 4" long Legacy AMT neodymium tweeters in a specially optimized array for extended treble up to 30kHz. Inspired by the award-winning AERIS system, the V delivers detailed and spacious sound with its open air dual 14" carbon/pulp midrange and bass drivers.

Designed by Bill Dudleston, the V system boasts a 12" ultra-linear bass driver, a 12" aluminum very low-frequency radiator, and three 10" mass-loaded pneumatic radiators. This unique setup provides exceptional dynamic response and minimizes room coloration. With 1,500 Watts of ICEpower® amplification, the V system ensures powerful low-frequency reproduction.

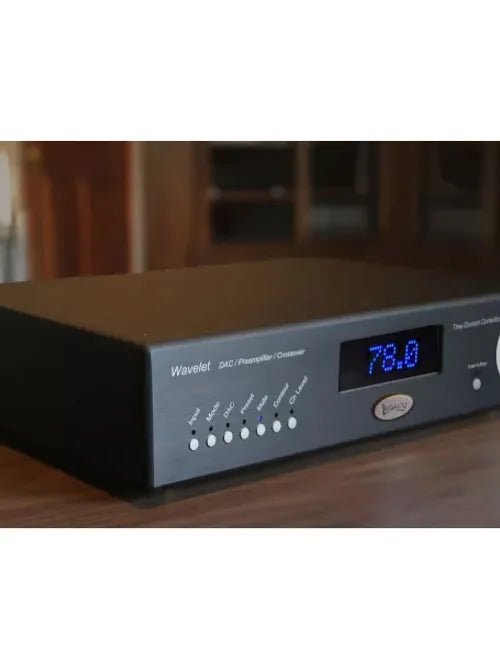

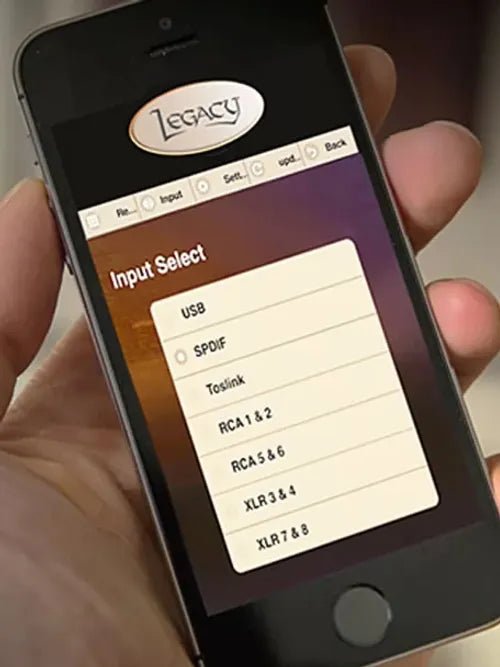

The V system introduces the groundbreaking Legacy Wavelet Processor, combining a preamp, four-way crossover with time alignment, speaker and room resonance correction, and a high-end DAC. Its Bohmer acoustic processing optimizes acoustics in both frequency and time domains, resulting in improved transient response. Control it wirelessly via iPad, smartphone, or computer for precise adaptation to any environment.

Not only does the V system deliver outstanding performance, but it also showcases exquisite craftsmanship. With optional high gloss, real wood veneer, and aluminum extrusions, its cabinet exudes elegance. Illumination at the center adds a touch of sophistication. As part of the Handcrafted Master's Series, the Legacy V sets a new standard for speaker systems, combining unmatched performance with stunning design.

• Download the V System Manual Here
