Signature XD Speakers From Legacy Audio

• ApplicationSealed enclosure, low sensitivity to room placement
• System Type5 driver, 4 way
• TweeterDual Air Motion Tweeter System – 1” AMT super tweeter, silver HF wire
• MidrangeDual Air Motion Tweeter System – 4” AMT tweeter
• Midrange7” Graphene-filled carbon fiber cone with cast frame
• SubwooferDual 10” spun aluminum diaphragm, rubber surround, long throw suspension with case frame
• Low Frequency AlignmentSealed, dynamic damping
• InputsPreamp level: XLR/RCA with adapter
• High Level1pr of 5-way binding posts
• Internal Amplification650 watts ICEpower® amplification
• Recommended Amplification20-300 watts for upper section
• Freq. Response (Hz, +/-2dB)22-30K
• Impedance4 Ohm
• Sensitivity92 dB (2.83V @ 1m)
• Crossover (Hz)180, 2.8K, 8K
• Dimensions HxWxD (inches)48 x 12 x 13.75
• Weight (each)110 lbs each

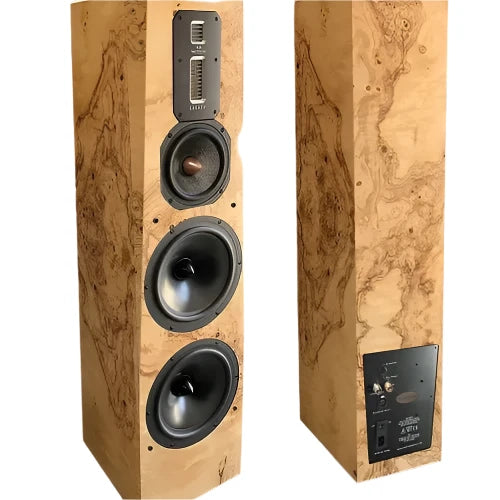

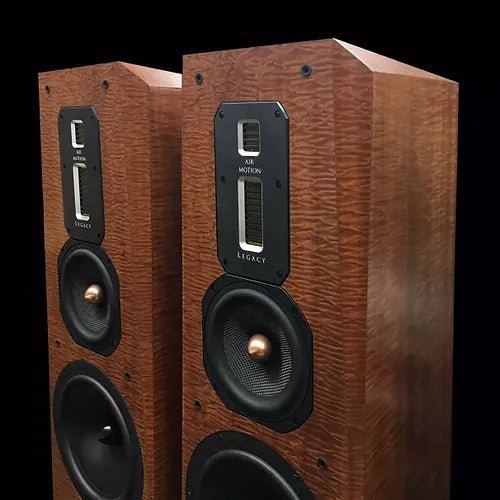

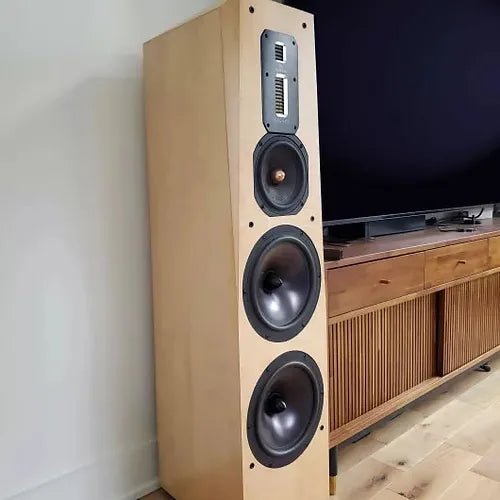

Experience mastering-grade audio precision with the Signature XD speaker system by Legacy Audio. Its Dual AMT tweeter configuration delivers exceptional treble articulation, providing greater air and detail. Vocals are beautifully rendered by the 7" graphene-filled carbon fiber midrange, featuring a massive magnetic structure and optimized copper phase-plug. The dual 10" woofers with rigid aluminum diaphragms reinforce lower vocal range and mid-bass, enriching baritones and larger stringed instruments. The powerful amplification ensures robust bass.

The Signature XD offers flexibility in amplifier configuration and room placement. It can be driven full range with its internal amplifier or divided with a switch to drive the upper section with external amplification. This accommodates both tube and Class A enthusiasts. Its sealed configuration allows placement near the front wall, while proprietary dynamic damping and carefully implemented crossovers reduce colorations from early reflections. For even greater results, the Legacy Wavelet processor facilitates bi-amplification and fine-tuning.

Download theSignature XD Manual Here
