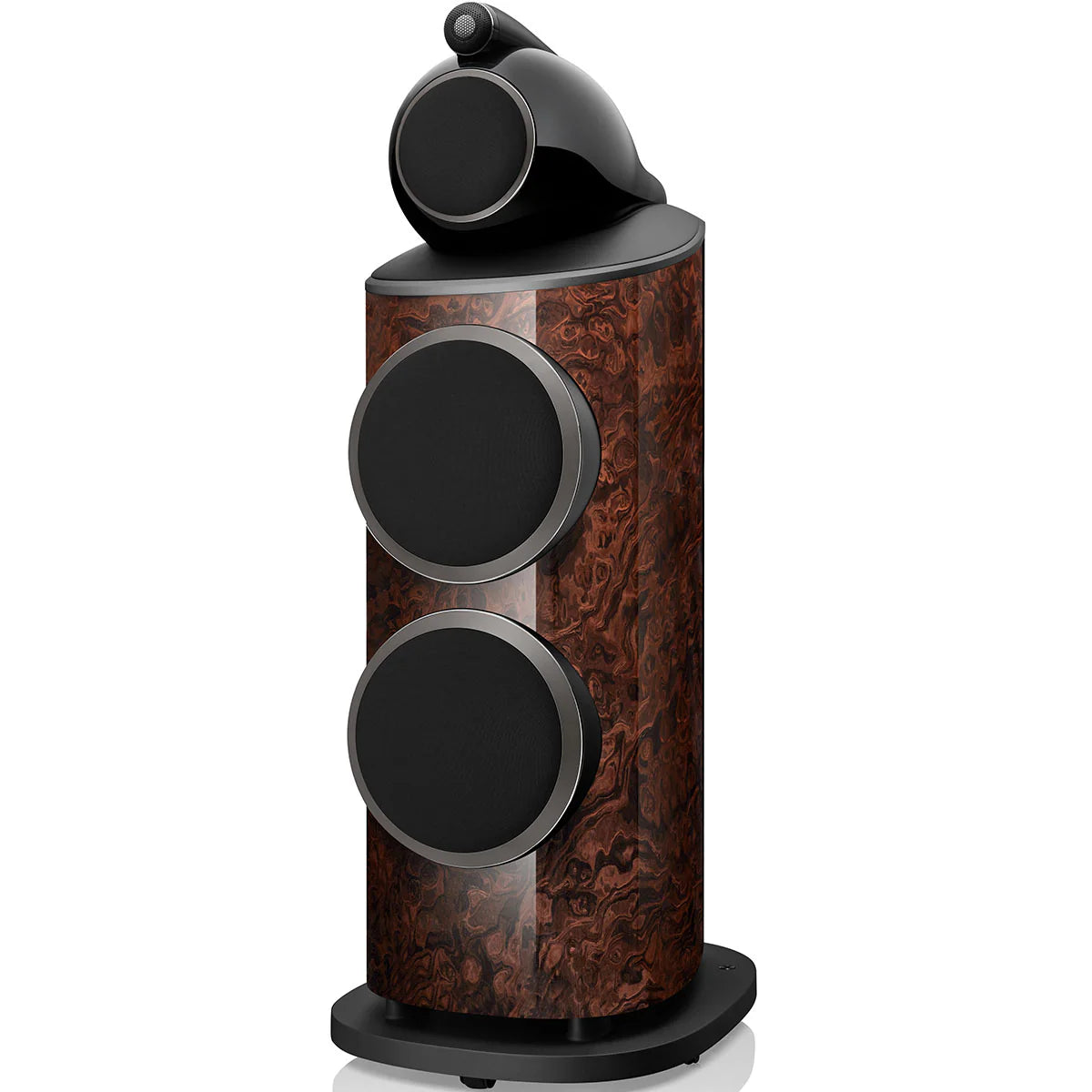

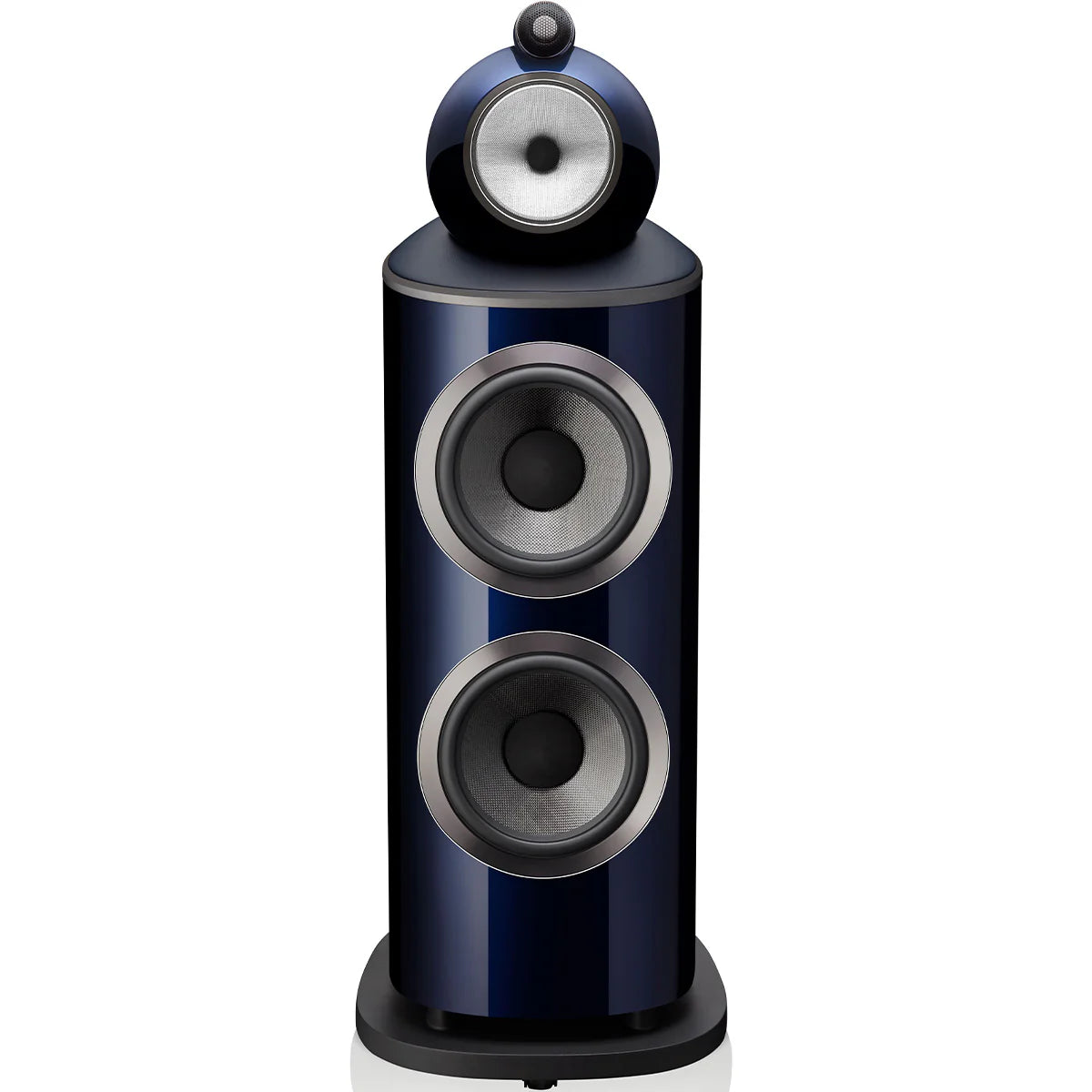

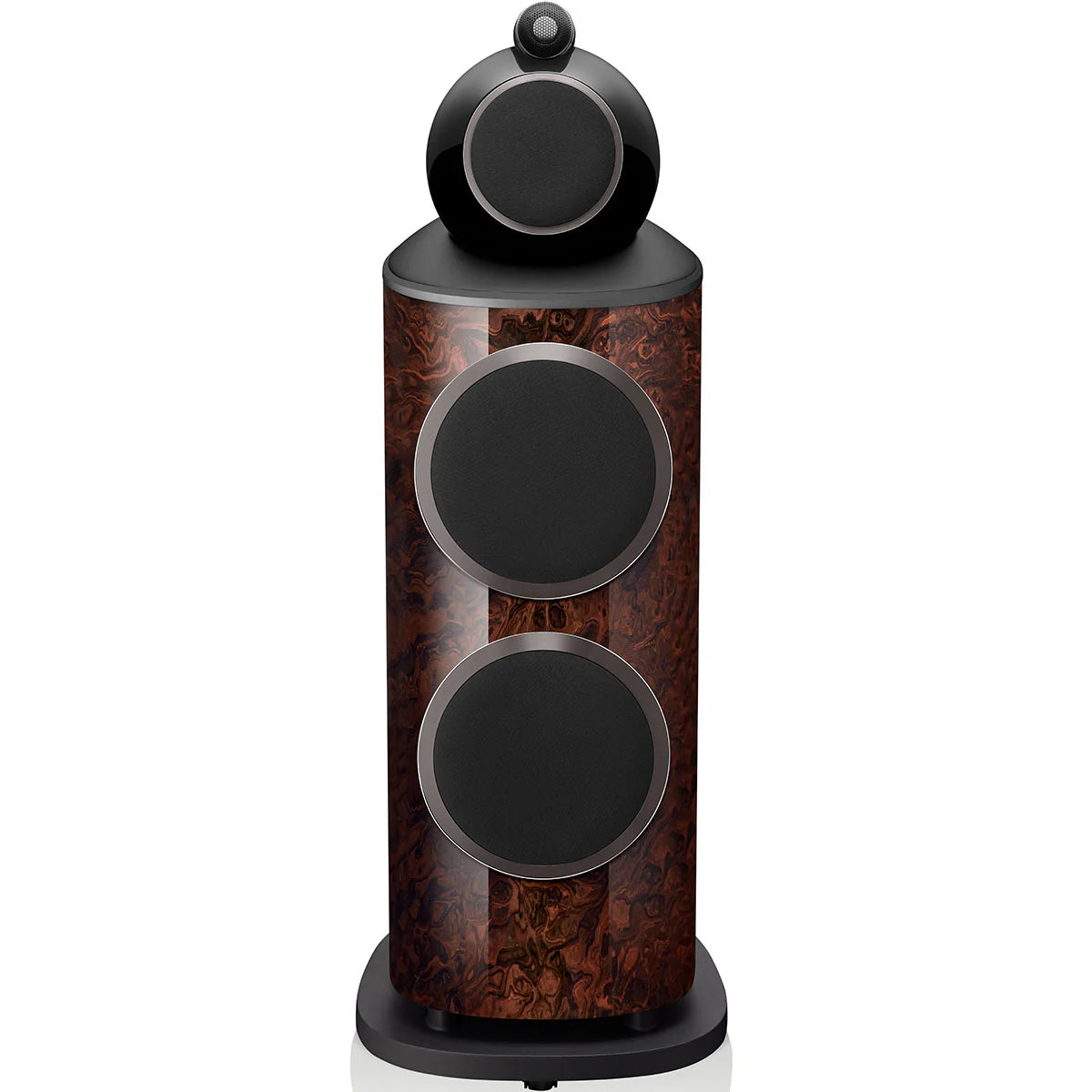

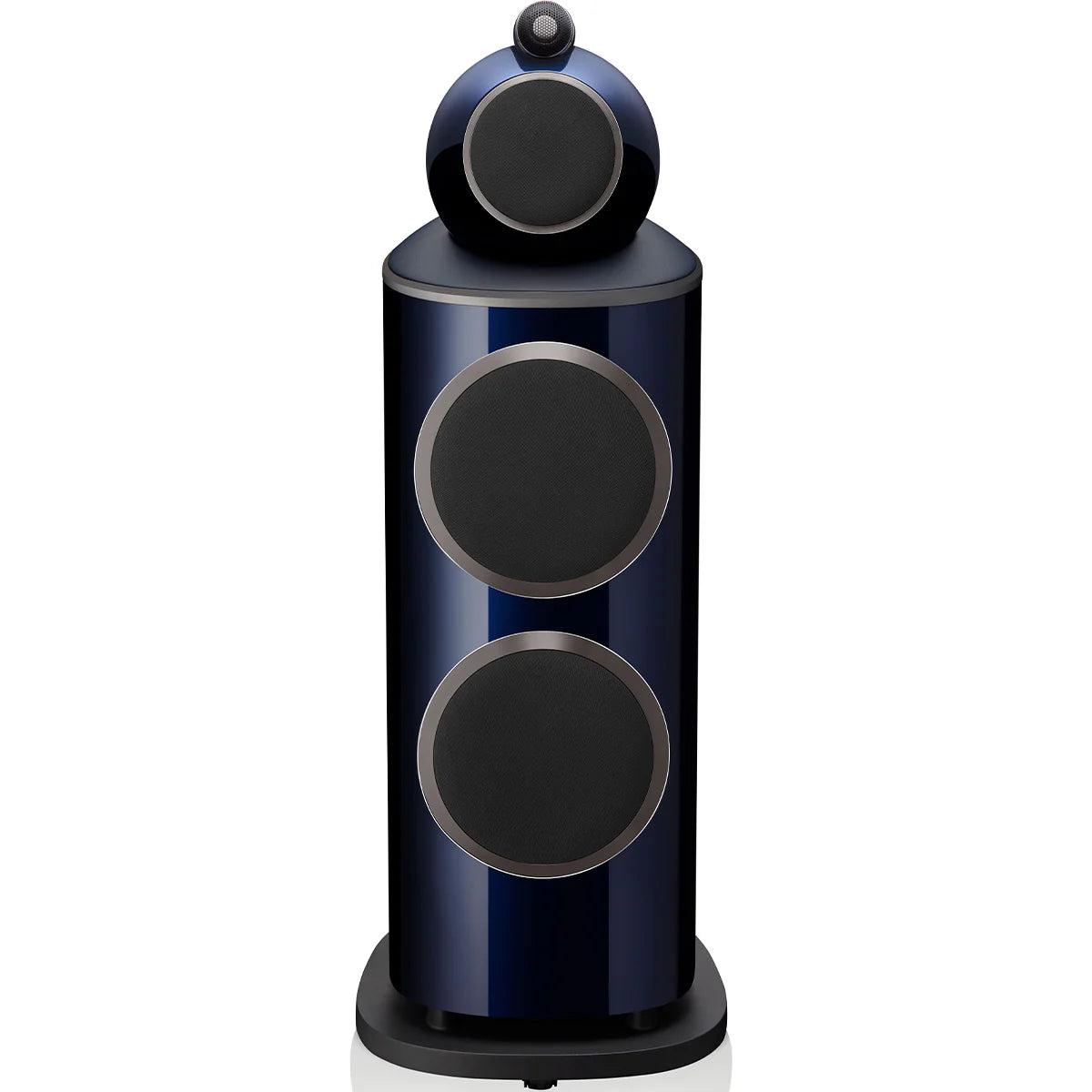

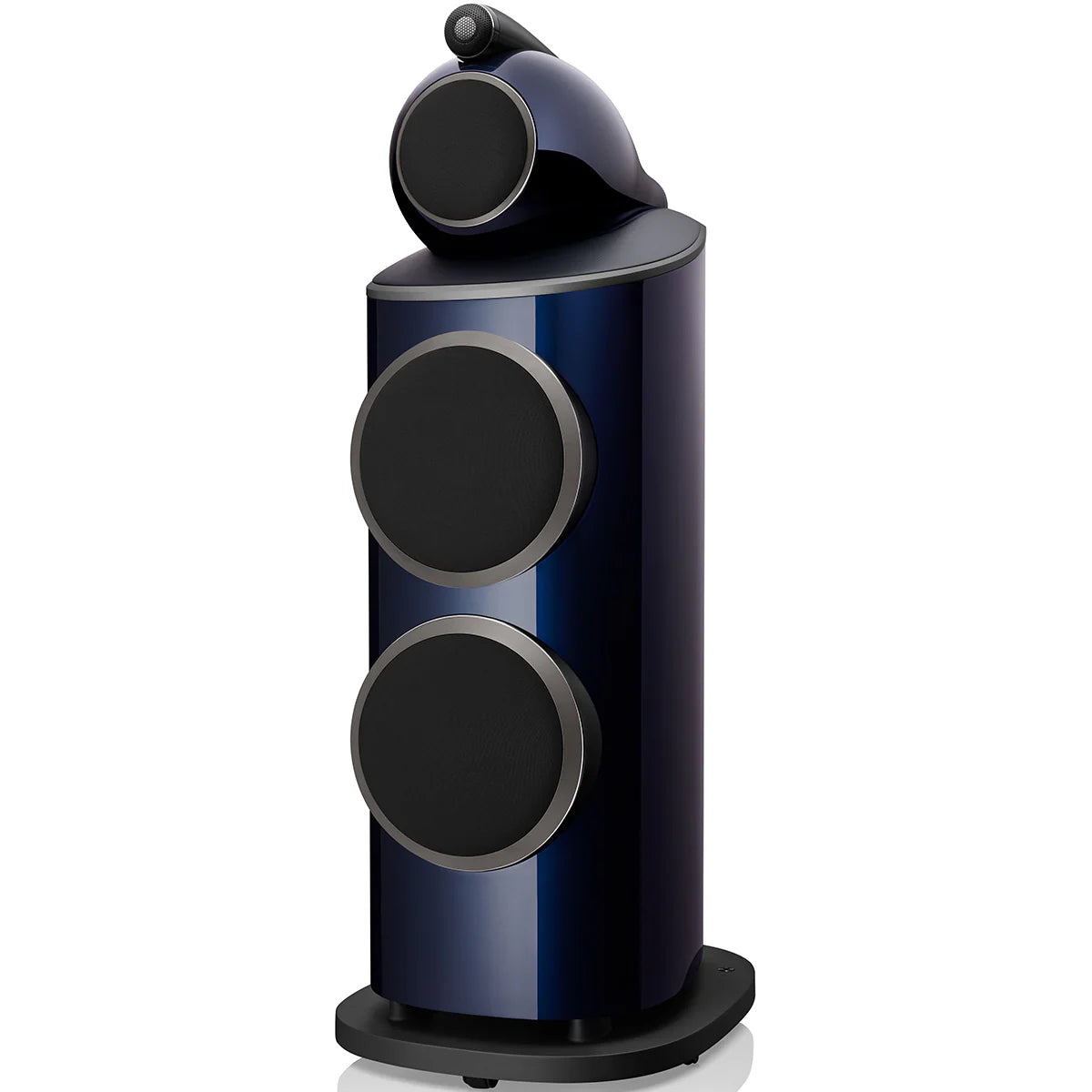

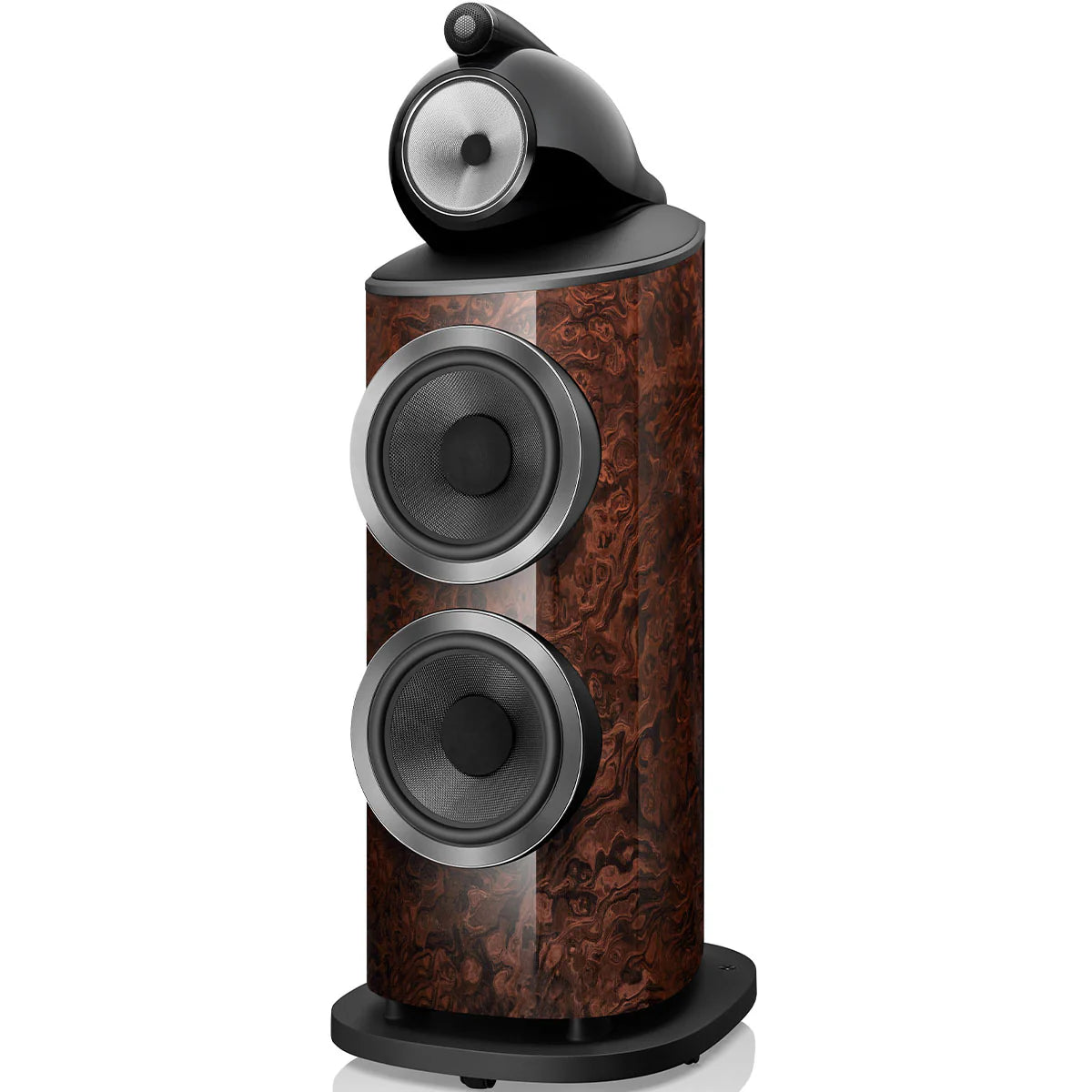

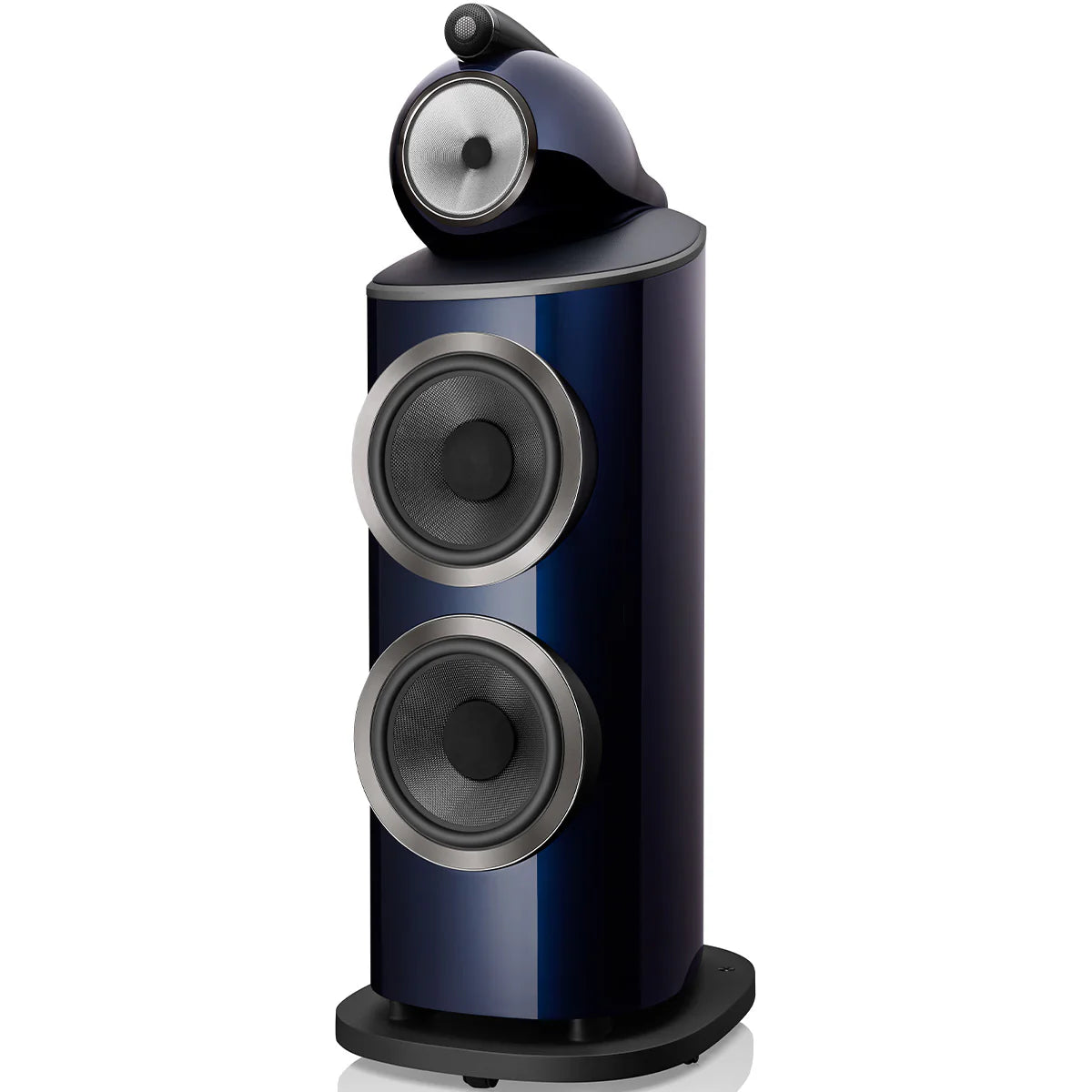

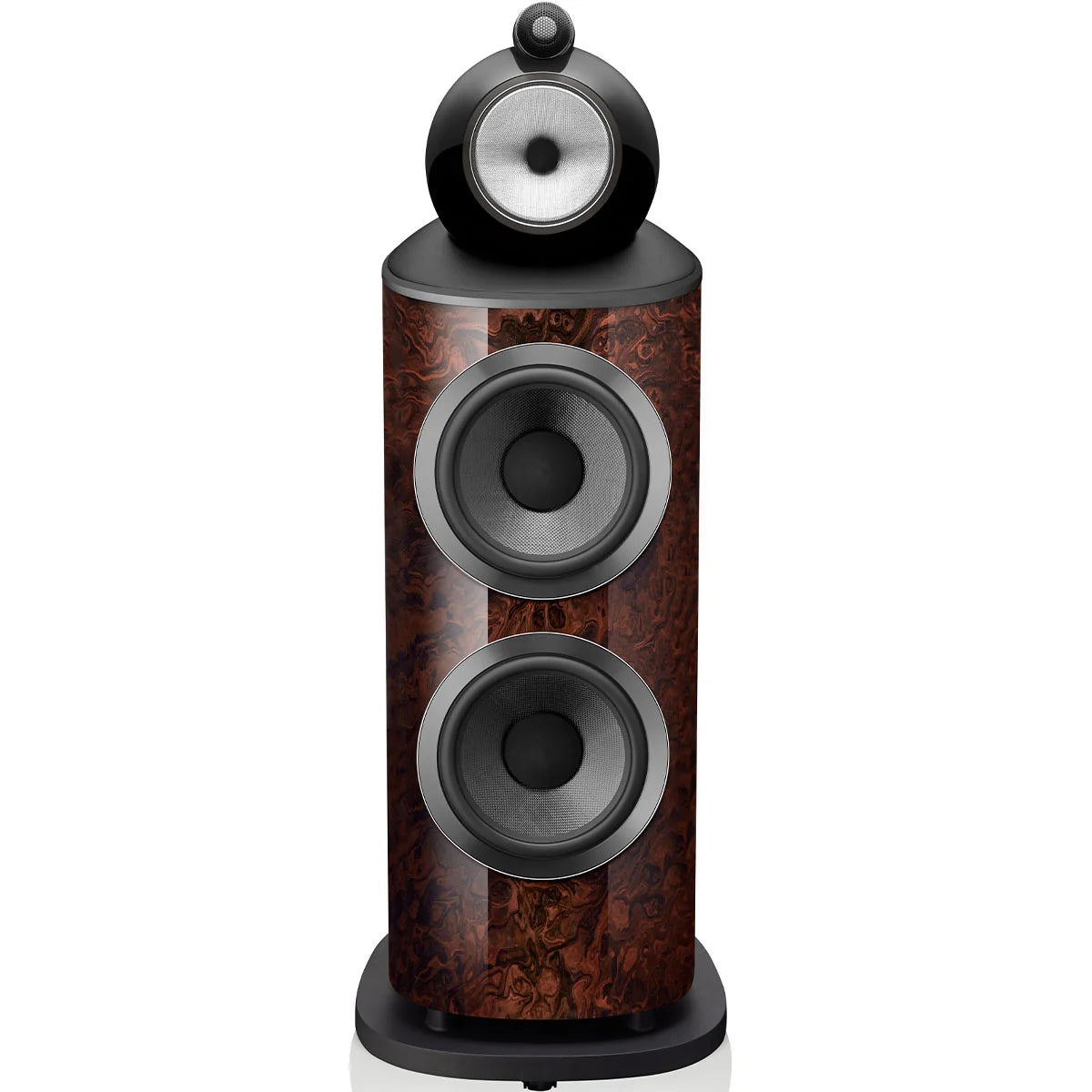

Bowers & Wilkins 801 D4 Signature

Solid Body Tweeter

The latest incarnation of our iconic Solid Body Tweeter-on-Top housing features an elongated form with a longer tube-loading system and an all-new design of tweeter grille that has been optimized to produce an even more free and open sound with high frequencies. As before, the carefully decoupled housing is milled from a single solid block of aluminium to better resist resonance.

Reverse Wrap cabinet

Instead of a flat-fronted speaker with a curving back, our cabinets are formed from one continuous curve, finished off with a spine of solid aluminium. Fewer joins make for a stiffer, more inert structure, and a curved front means less baffling around the drive units. So sound dispersion is improved, and cabinet reflection is reduced.

Matrix™

Matrix™ bracing uses interlocking panels to reinforce loudspeaker cabinet walls in all directions internally, reducing resonance and creating a more believable soundstage. Both the new 800 Series Signature models benefit from our most advanced Matrix design that combines solid plywood construction with aluminium bracing to reinforce key stress points.

Continuum™ Cone

Thanks to its composite construction, the Continuum™ Cone avoids the abrupt transitions in behavior that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.

Decoupled Midrange assembly

Our 801 D4 Signature loudspeaker has a dedicated midrange cone using four key Bowers & Wilkins technologies: the Continuum™ Cone, FST™, Biomimetic Suspension and midrange decoupling, the latter ensuring minimal interference from the operation of the loudspeaker’s bass drivers.

Crossover

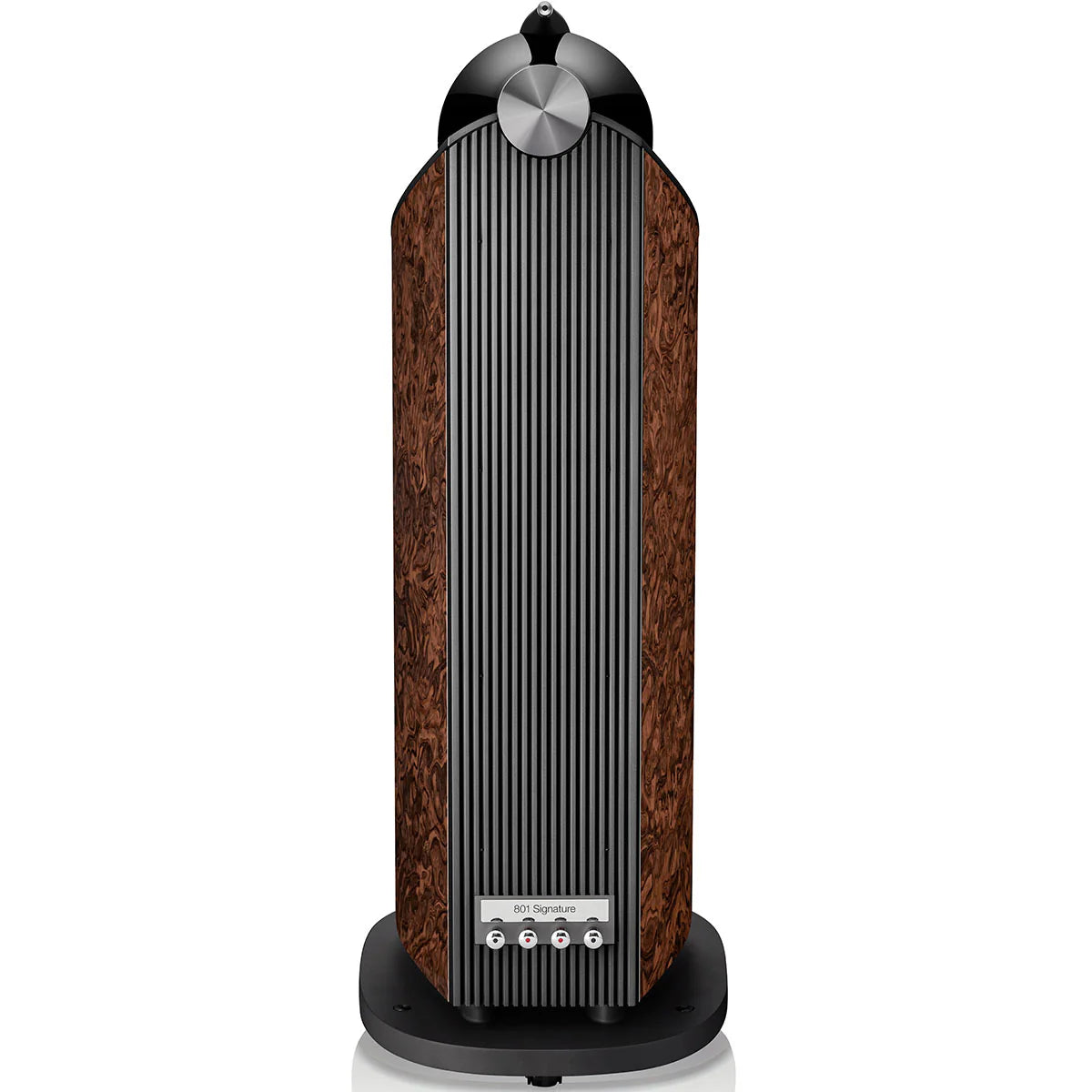

Both new 800 Series Signature models use upgraded rear-mounted crossover designs mounted on stiff aluminium spines. This isolates the sensitive capacitors from the unwanted effects of air pressure within the enclosure and makes for a very effective heatsink to ensure optimum performance when in use.

Leather by Connolly

The top section of both speakers features an optimized aluminium top plate, covered in all-new Leather by Connolly trim. We use luxurious, full-grain blue leather for Midnight Blue Metallic, and full-grain black leather for California Burl Gloss.

• Technical features -
• Description - 3-way vented-box system
• Drive units -
• Frequency range - 13Hz to 35kHz
• Frequency response (+/-3dB from reference axis) - 15Hz to 28kHz
• Sensitivity (on-axis at 2.83Vrms at 1m) - 90dB
• Harmonic distortion -
• Nominal impedance - 8Ω (minimum 3.0Ω)
• Recommended amplifier power - 50W – 1000W into 8Ω on unclipped program
• Max. recommended cable impedance - 0.1Ω
• Dimensions -
• Finishes -
