Bowers & Wilkins ISW-4

Description

• Type: In-wall subwoofer system with external rackmount amplifier

Drive Units

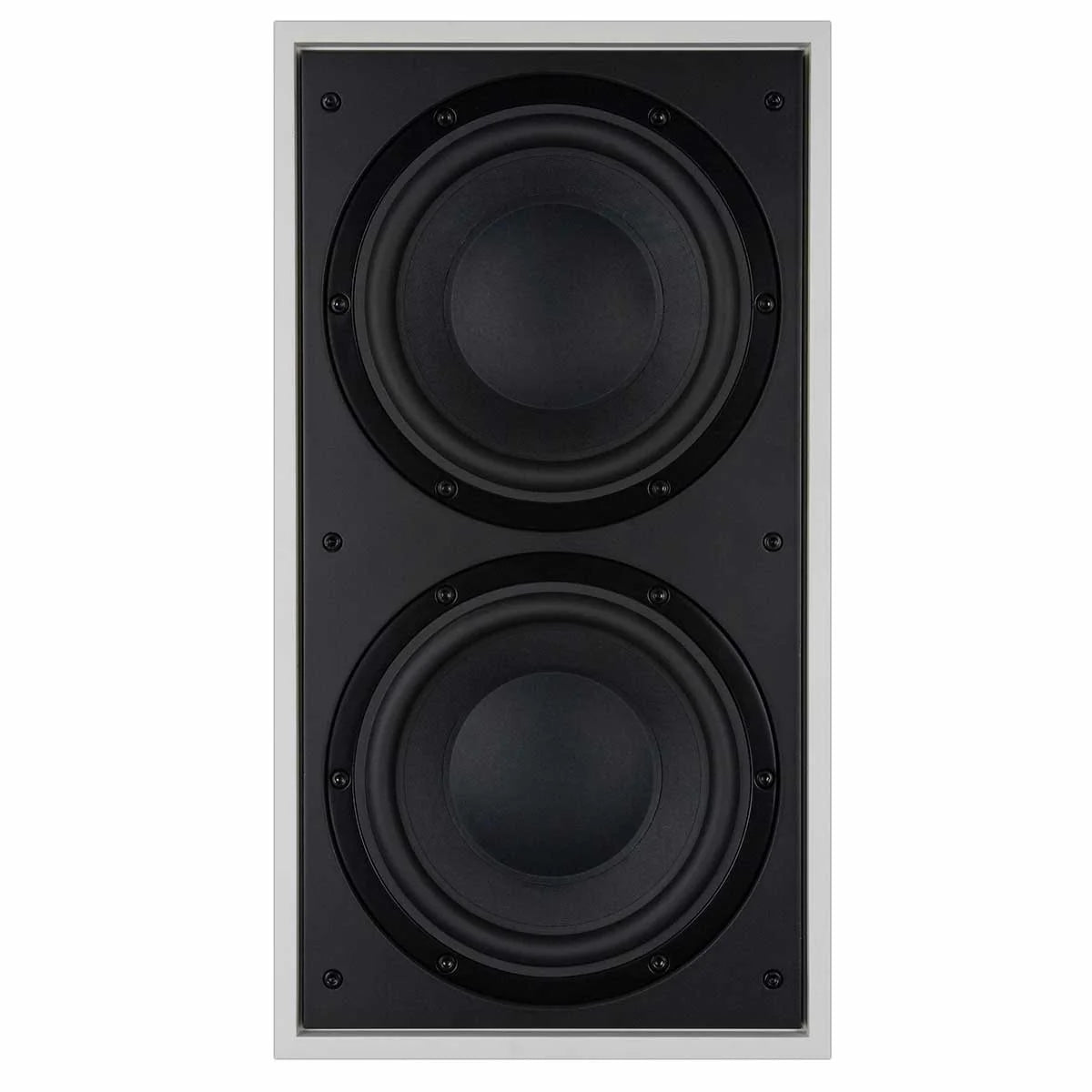

• Size: 2 x 200mm (8 in)
• Material: Paper / Kevlar® cone

Frequency Range & Response

• Range: -6dB at 17Hz and 290Hz adjustable (EQ at A)
• Response: ±3dB 21Hz - 200Hz adjustable (EQ at A)

Bass Extension

• Position A: -6dB at 17Hz
• Position B: -6dB at 21Hz
• Position C: -6dB at 24Hz

Power Handling

• Power: 200W (8Ω, minimum 6.3Ω)

Dimensions

• Height: 494mm (19.5 in)
• Width: 264mm (10.4 in)
• Depth: 99mm (3.9 in)
• Depth with Grille: 114mm (4.5 in)

Cut-out Size

• Height: 485mm (19.9 in)
• Width: 255mm (10 in)

Weight

• Net Weight (Subwoofer): 6.4kg (14.1 lb)
• Net Weight (Back Box): 9.6kg (21.2 lb)

Finish

• Color: Semi-matte white, suitable for customizing or pre-painting

Frame / Grille Accessories

• Included: Pre-mount kit for new construction

Back Box Dimensions

• Height: 1406mm (55.4 in)
• Width: 345mm (13.6 in)
• Depth: 86mm (3.4 in)

Material

• Subwoofer & Box: MDF
