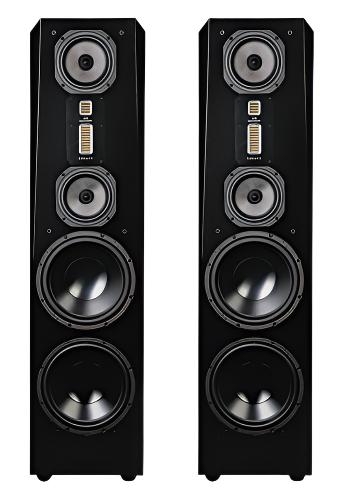

Focus SE Speakers From Legacy Audio

• Midrange:
  Dual Air Motion Tweeter System- 4" AMT Tweeter

• Midwoofer:
  Dual 7" Silver Graphite, cast frame

• Subwoofer:
  Dual 12" ultra-linear bass drivers with 15 lb motor

• Low Frequency Alignment:
  Assisted 6th order Butterworth, dual rear ported

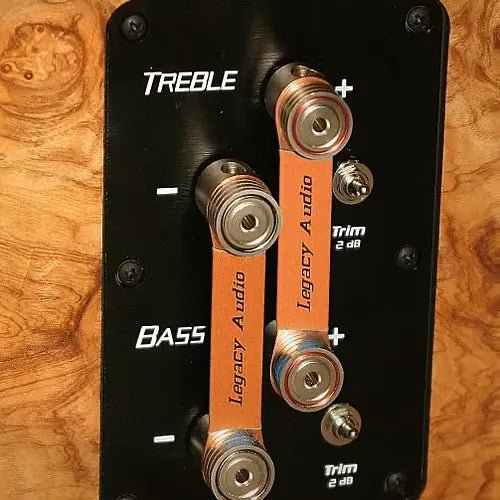

• Inputs:
  2 Pair binding post for Treble and Bass

• Internal Amplification:
  None, Internal Amplification available in the Focus SE

• Recommended Amplification:
  30 - 750 Watts

• Freq. Response (Hz, +/-2dB):
  18-30K

• Impedance:
  4 Ohm

• Sensitivity:
  95.4 dB (2.83V@1m)

• Crossover:
  120, 2.8K, 8K

• Dimensions HxWxD (inches):
  55 x 14 x 15.375

• Shipping Dimensions HxWxD (inches):
  62 x 22 x 22

• Weight (each):
  136 Ibs

• Shipping Weight (each):
  188 lbs

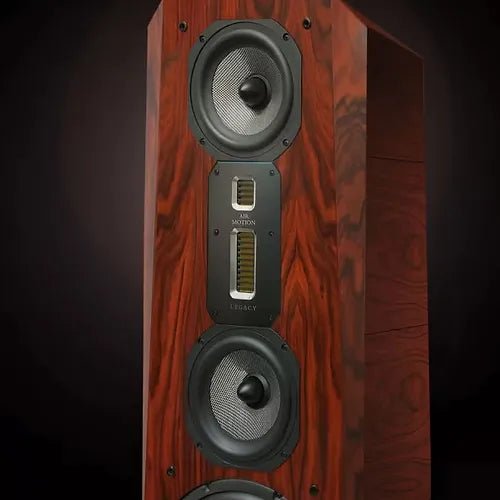

Experience unparalleled transparency with the high-velocity Dual Air Motion Tweeter, moving air 16 times more effectively than traditional dome devices. The treble exhibits a natural fullness that reminds us why we love high-end audio. For the high-frequency network, Solen® metallized polypropylene capacitors from France were meticulously chosen as bypasses, while braided silver wire was utilized for the upper ribbon.

The dual 12" woofers in the Focus SE deliver extraordinary linear output, offering snap, definition, and rich upper bass. Thanks to a 15 lb motor structure, they seamlessly transition to the lower midrange. To prevent bothersome floor reflections, the Focus SE employs a symmetric array of exotic 7" Silver/Graphite cast frame drivers. These drivers feature cones pressed from a composite weave of silver, titanium, and graphite, accompanied by an additional reversion magnetic under the phase plug.

Download the Focus SE Manual Here
