Goliath XD Subwoofer From Legacy Audio

Application:
Highly Articulate reference grade dual sub-woofer system

System Type:
Mutually coupled, dynamically stabilized

Subwoofer:
Dual 15" Spun aluminum diaphragm, cast frame, ultra long throw suspension

Radiator:
Dual 15" mass loaded, bottom & rear firing

Low Frequency Alignment:
8th Order/Back EMF cancelling

Inputs:
Dual XLR balanced

Internal Amplification:
Dual 1,000 Watt ultra efficient ICEpower® modules

Frequency Response (Hz, +/- 2dB):
12-150 Hz

Impedance:
10K Ohm amp input

Phase Adjustment:
Available via external processor

Blend EQ:
Available via external processor

Max. SPL:
130 dB @ 1m

Low Pass Filter Slope:
Linkwitz-Riley 6/12/24/48 dB per octave

Crossover (Hz):
30-200

Dimensions (WxHxD):
18.125 x 40.125 x 19.125

Weight:
190 lbs

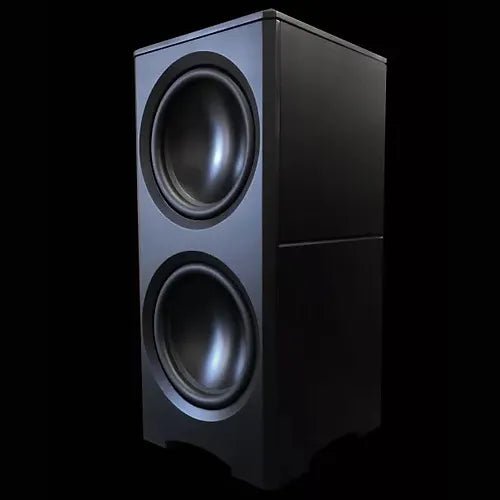

The Goliath XD subwoofer is equipped with dual 15" subwoofer drivers featuring spun aluminum diaphragms, cast frames, and ultra long throw suspensions. The drivers are powered by two 1,000 watt ultra efficient ICEpower® amplifier modules, providing exceptional power and performance.

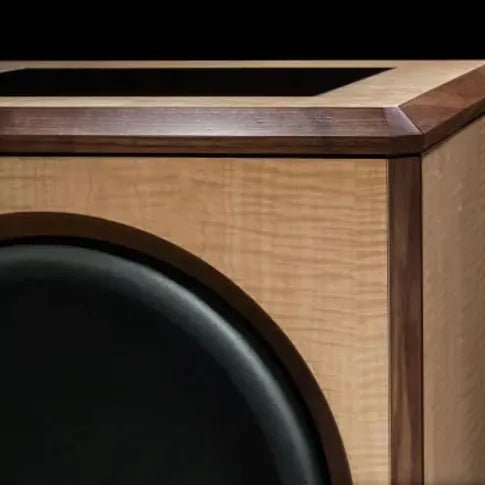

To ensure deep extension without port noise, the Goliath XD incorporates two 15" custom weighted passive radiators. The subwoofer's enclosure features a sturdy construction, with a 2.25" thick front baffle and a top dark granite inlay for added durability and aesthetics.

With a frequency range of 12-150 Hz, the Goliath XD delivers powerful and accurate bass reproduction. Its meticulous design, including stitched lead wires to prevent wear and vibration, a rigid aluminum dustcap, and a robust cast frame, ensures optimal performance and longevity.

Experience the deepest lows and immersive bass with the Goliath XD, backed by the quality and efficiency of its dual amplifiers and expertly crafted components.

• Download the Goliath XD Subwoofer  Manual Here
