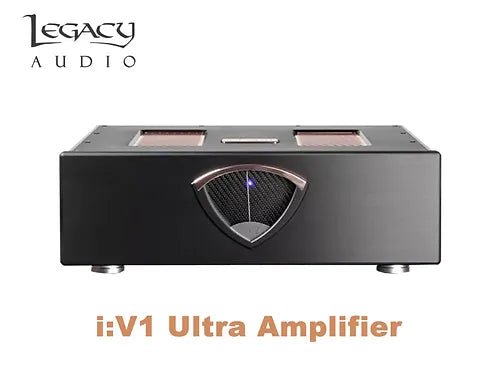

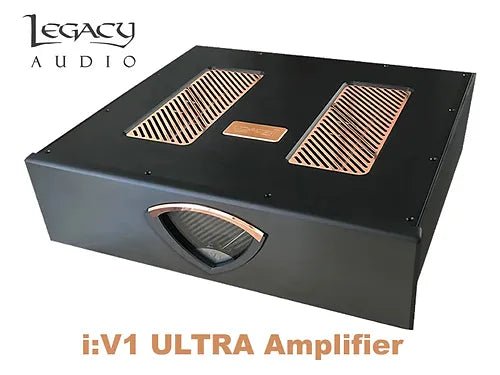

i:V1 ULTRA Amplifier by Legacy Audio

• Power Rating: 1,600 watts per channel @ 4 ohms, 1,125 watts per channel @ 8 ohms
• Peak Power: 2.0 kW peak power @ 4 Ohm/ 1kHz with less than 1% distortion
• Over Current Protection: Breaker reset for excessive sustained current

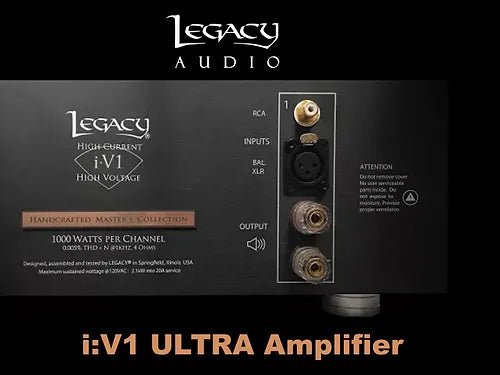

• Inputs: Fully balanced XLR, single-end RCA
• Outputs: Gold plated safety approved five-way binding posts
• Damping factor: 800 average, 20Hz to 1kHz
• Voltage Gain: 29.5 dB
• Dynamic Range: 127 dB, A-weighted
• Voltage/Current: 149 Vp/ 38Ap
• Input Sensitivity: 5.0 Vp @ 1200W/4 Ohm
• Input Impedance: 38 kOhm for both pin 2+ and pin 3-
• Channel Separation: 120 dB at 1kHz
• Unit Dimensions: 17.5" W x 15.6" D x 5.8" H
• Unit Shipping Weight: 33 lbs each

Download Manual

• ICEedge® Technology: Experience the pinnacle of sound purity and efficiency, ensuring your music remains true to its original form.
• Powerful Output: With 1,125 watts per channel into 8 ohms and 1,600 watts into 4 ohms, enjoy dynamic and expansive sound across all volumes.
• Comprehensive Protection: Equipped with short circuit and thermal protection to safeguard your audio investment.

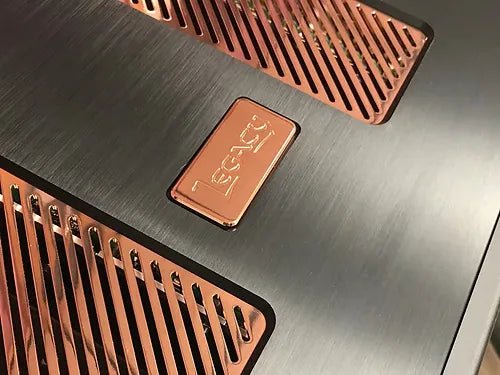

• Sleek Design: The i·V1 ULTRA's elegant design makes it a sophisticated addition to any audio setup.
• Versatile Connectivity: Fully balanced XLR and single-end RCA inputs, along with gold-plated binding posts, offer flexible connection options.
