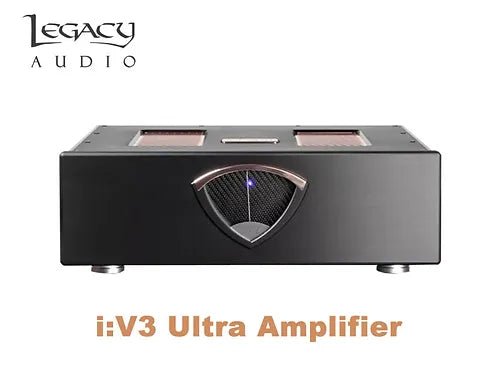

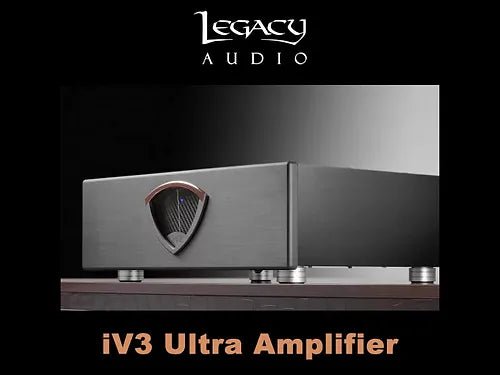

i:V3 ULTRA Amplifier by Legacy Audio

• Power Rating: 1000 watts per channel x 3 @ 4 ohms, all channels driven 610 watts per channel x 3 @ 8 ohms, all channels driven
• Peak Power: 1.2 kW peak power from any channel @ 4 Ohm/ 1kHz with less than 1% distortion
• Over Current Protection: Breaker reset for excessive sustained current
• Inputs: Fully balanced XLR, single-end RCA
• Outputs: Gold plated safety approved five-way binding posts
• Damping factor: 750 average, 20Hz to 1kHz
• Voltage Gain: 25.8 dB
• Dynamic Range: 127 dB, A-weighted
• Voltage/Current: 98 Vp/ 38Ap
• Input Sensitivity: 5.0 Vp @ 1200W/4 Ohm
• Input Impedance: 38 kOhm for both pin 2+ and pin 3-
• Channel Separation: 120 dB at 1kHz
• Unit Dimensions: 17.5" W x 15.6" D x 5.8" H
• Shipping Weight: 35 lbs
• Notes: Highest power output can be obtained using a single 230V, 20A line. AC cord is provided.

Download Manual

• Advanced ICEedge® Technology: Experience the pinnacle of audio purity and operational efficiency, ensuring your music remains untainted and your system cool.
• Powerful Three-Channel Output: With over 600 watts per channel, the i·V3 ULTRA envelops you in a sound that's both expansive and detailed.
• Comprehensive Protection: Equipped with short circuit and thermal protection for peace of mind and enduring performance.
• Elegant and Efficient: A design that's not only pleasing to the eye but also to the ear, thanks to its dedicated module per channel approach.
• Versatile Connectivity: Fully balanced XLR and single-end RCA inputs, along with gold-plated binding posts, cater to all your connectivity needs.
