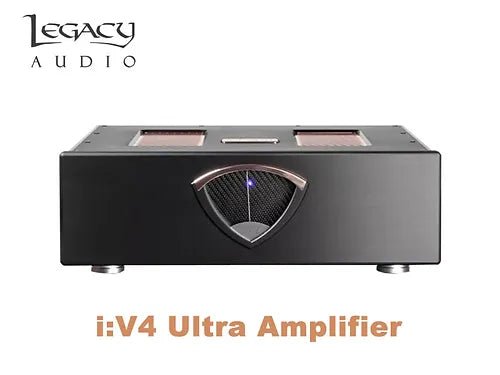

i:V4 ULTRA Amplifier by Legacy Audio

• Power Rating: 1000 watts per channel x 4 @ 4 ohms, all channels driven 610 watts per channel x 4 @ 8 ohms, all channels driven
• Peak Power: 1.2 kW peak power from any channel @ 4 Ohm/1kHz with less than 1% distortion
• Over Current Protection:
• Breaker reset for excessive sustained current

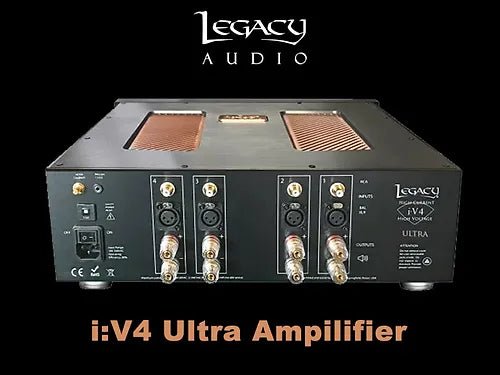

• Inputs: Fully balanced XLR, single-end RCA
• Outputs: Gold plated safety approved five-way binding posts
• Damping factor: 750 average, 20Hz to 1kHz
• Voltage Gain: 25.8 dB
• Dynamic Range: 127dB, A- weighted
• Voltage/Current: 98 Vp / 38Ap
• Input Sensitivity: 5.0Vp @ 1200W/4 Ohm
• Input Impedance: 38 kOhm for both pin 2+ and pin 3-
• Channel Separation: 120 dB at 1kHz
• Unit Dimensions: 17.5" W x 15.6" D x 5.8" H
• Unit Shipping Weight: 38 lbs
• Notes: Highest power output can be obtained using a single 230V, 20A line. AC cord is provided.

Download Manual

• State-of-the-Art ICEedge® Technology: Experience unparalleled audio purity and operational efficiency, ensuring your music remains untainted and your system cool.
• Powerful Four-Channel Output: With 610 watts per channel into 8 ohms, the i·V4 ULTRA envelops you in a sound that's both expansive and detailed.
• Comprehensive Protection: Equipped with short circuit and thermal protection for peace of mind and lasting performance.

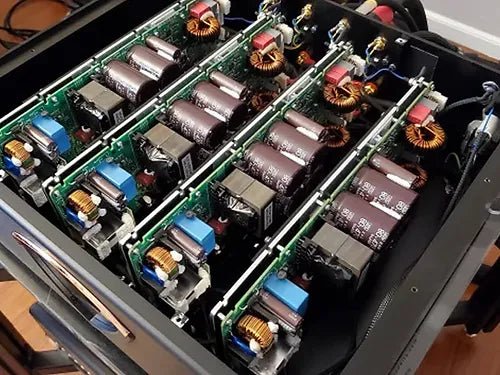

• Elegant and Efficient Design: A design that's pleasing to the eye and the ear, thanks to its dedicated module-per-channel approach.
• Versatile Connectivity: Offers fully balanced XLR and single-end RCA inputs, along with gold-plated binding posts, catering to all your connectivity needs.
