Trinnov

Trinnov Amplitude16

$12,500.00

Specifications

Audio Power & Gain

  • One Channel 8Ω: 200W (1kHz, 0.1% THD+N)
  • One Channel 4Ω: 400W (1kHz, 0.1% THD+N)
  • One Channel Bridged 8Ω: 800W (1kHz, 0.1% THD+N)
  • One Channel Bridged 4Ω: 1000W (1kHz, 0.1% THD+N)
  • Total Output Power (120 VAC): 2800W (all channels driven SE or BTL)
  • Total Output Power (230 VAC): 3200W (all channels driven SE or BTL)
  • Peak Power: 6080W (all channels driven SE or BTL)
  • Gain: 16 dB (single-ended) / 22 dB (bridged)

Audio Performance

  • THD+N (Single-Ended): 0.0015% (8Ω, 5W, 2dBu)
  • THD+N (Bridged): 0.0015% (8Ω, 20W, 8dBu)
  • Frequency Response: +0/-0.6 dB, 20 Hz to 20 kHz (load-independent)
  • Damping Factor:
  • Signal-to-Noise Ratio: 126 dB (ref. to rated 1% THD output, A-Weighted)
  • Crosstalk: 96 dB (single-ended, 200W, 8Ω)
  • Intermodulation Distortion: <0.05%

Audio Inputs & Outputs

  • Input Connectors: 2x DB25 Female (Tascam Analog Pinout)
  • Input Impedance: 47 kΩ (each phase)
  • Input Sensitivity: 6.16V (+18dBu)
  • Output Connectors: 1x 5-way binding post per channel

Power Supply

  • Power Requirement: 2x 100/240V (auto-selecting)
  • Power Consumption:
  • Power Input: 2x IEC C14
  • Inrush Current at Startup: 16A (<100ms, each inlet)
  • Thermal Conversion: 683 BTU/h (Max)
  • Mains Fuse: 2x 10 Amp slow blow
  • 12V Trigger Input: 5-15 VDC (steady state, mini-jack TS)
  • 12V Trigger Output: 8-10 VDC (steady state, mini-jack TS)

Weight & Dimensions

  • Dimensions (W x H x D) mm (with rack ears): 482 x 132 x 452
  • Dimensions (W x H x D) inches (with rack ears): 19” x 5 1/5” x 17 4/5”
  • Shipping Box Dimensions (W x H x D) cm: 54 x 53 x 22
  • Weight: 20.5 kg / 45.3 lbs
  • Shipping Weight/Volume: 22.4 kg / 0.064 M³

Warranty

  • Standard Warranty: 5 years
  • Transferable: Yes

~ That's Epic.

Designing solutions that connect families and enrich your home.

Product message

Description

Amplitude 16: Versatility Meets Power in Home Theater Amplification

The Amplitude 16 is the most adaptable power amplifier ever designed, catering to the dynamic requirements of immersive home theaters. Built with custom integration in mind, it provides unmatched flexibility for integrators to meet various channel counts and power needs, making it a game-changer for luxury home theater setups.


A Powerhouse of Performance

Essentially two 8-channel amplifiers housed within a single 3RU chassis, the Amplitude16 is equipped with dual power supplies, each requiring its own 15A AC mains power connection.

  • Continuous Power:
    • 2800W at 115V
    • 3200W at 230V
    • Both at less than 0.1% THD+N with all 16 channels driven.
  • Peak Power:
    • 6080W at 1% THD+N with all 16 channels driven.

Bridgeable Power for Maximum Flexibility

In its standard configuration, the Amplitude16 delivers 200W/channel at 8 ohms and 400W/channel at 4 ohms. However, its unique design allows for channels to be bridged, empowering integrators to allocate higher power to specific outputs like front left, center, and right screen channels.

  • Bridged Power:
    • 800W/channel at 8 ohms
    • Over 1,000W/channel at 4 ohms

This flexibility ensures exceptional performance tailored to each system's unique demands.


Effortless Connectivity and Monitoring

The Amplitude16 is designed with efficiency in mind:

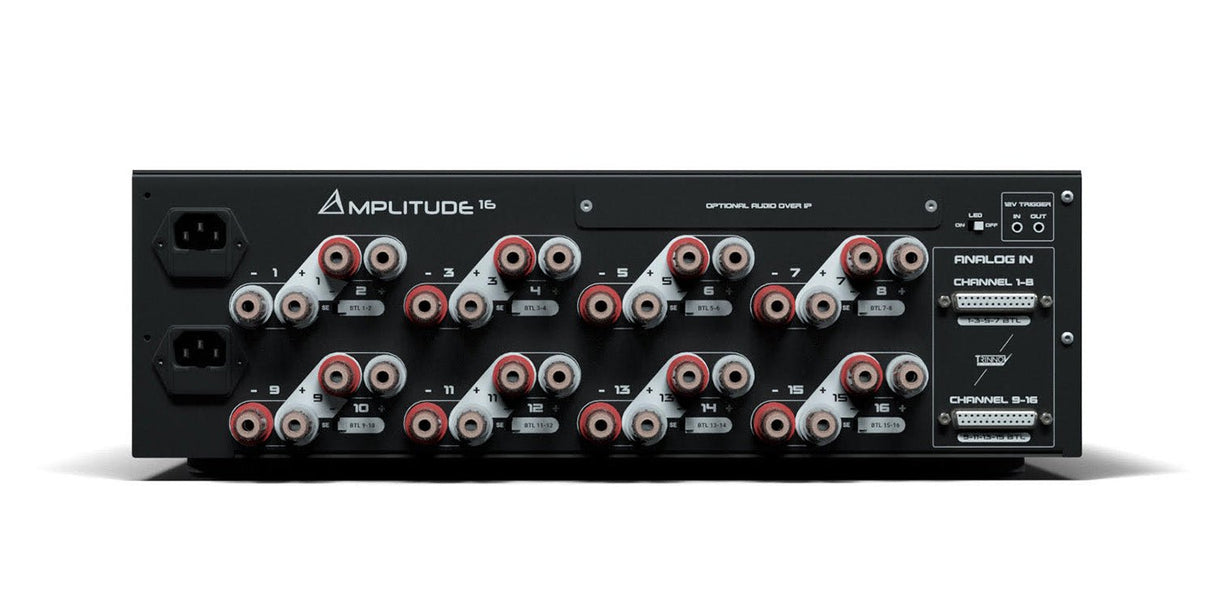

  • Balanced Analog Input: Features dual Tascam pinout DB25 connectors, reducing the need for up to 16 individual XLR connections.

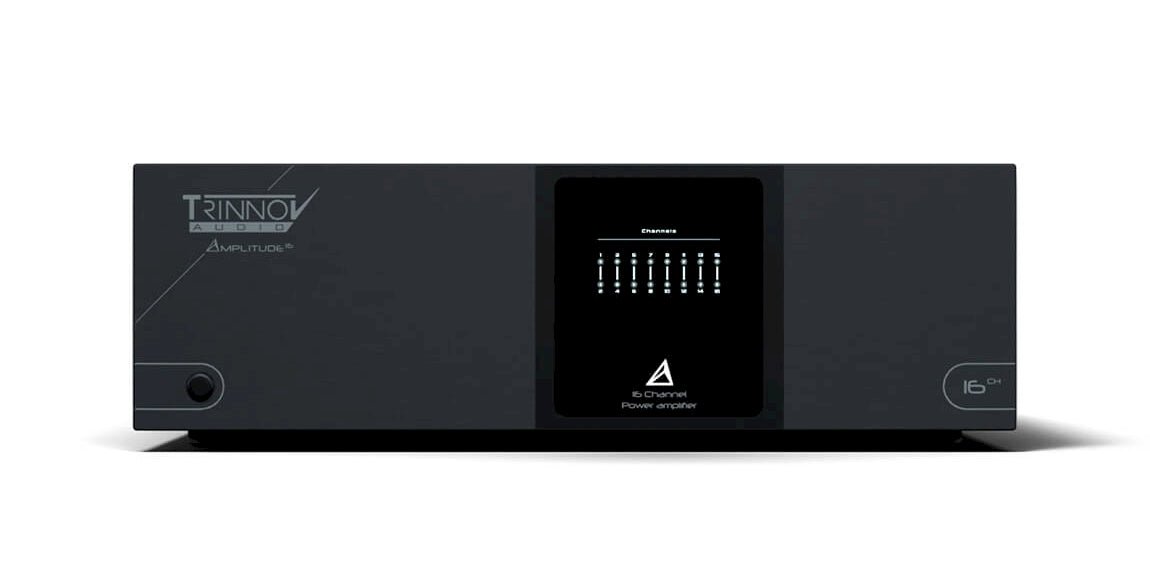

  • Front Panel LED Display: Monitors channel status, including clipping, protection, and bridge mode for each pair of channels.
  • Trigger Inputs and Outputs: Enable seamless integration by powering on the amplifier and allowing daisy-chaining of multiple amplifiers.

Seamless Integration with Epic Systems

The Amplitude16 is perfectly calibrated to match the output level of Epic Systems processors, such as the Altitude series. This alignment optimizes dynamic range and signal-to-noise ratio, delivering a whisper-quiet background and crystal-clear audio.

This precision is critical in immersive theaters, where systems with dozens of speakers could otherwise suffer from cumulative background noise. The Amplitude16 ensures total silence during quiet moments, preserving every delicate audio detail.


Audio Over IP Ready

Future-proofing advanced applications, the Amplitude16 offers an optional Audio over IP input board. This feature enables:

  • Networked audio connectivity.
  • Amplifier hardware status monitoring.

This unique capability prepares the system for the next generation of high-end home theater setups.


The Amplitude16 embodies the ideal blend of performance, versatility, and innovation, ensuring it meets the highest expectations of audiophiles and integrators alike.
