Trinnov

Trinnov Amplitude 8m

$9,500.00

Specifications

Audio Power & Gain

  • Power Output (8Ω, 20-20kHz, 0.05% THD+N): 200 Watts RMS x 8
  • Power Output (4Ω, 20-20kHz, 0.05% THD+N): 300 Watts RMS x 8
  • Gain: 19dB (Test window 18.6 to 19.6dB, center is 19.1dB)

Audio Performance

  • Frequency Response: +0, -0.5 dB, 5 Hz to 20kHz (load independent)
  • Damping Factor: >800 (20Hz to 20kHz)
  • Signal to Noise Ratio: -120 dB (referenced to rated output)
  • Crosstalk: <90dB
  • Intermodulation Distortion: Less than 0.05%

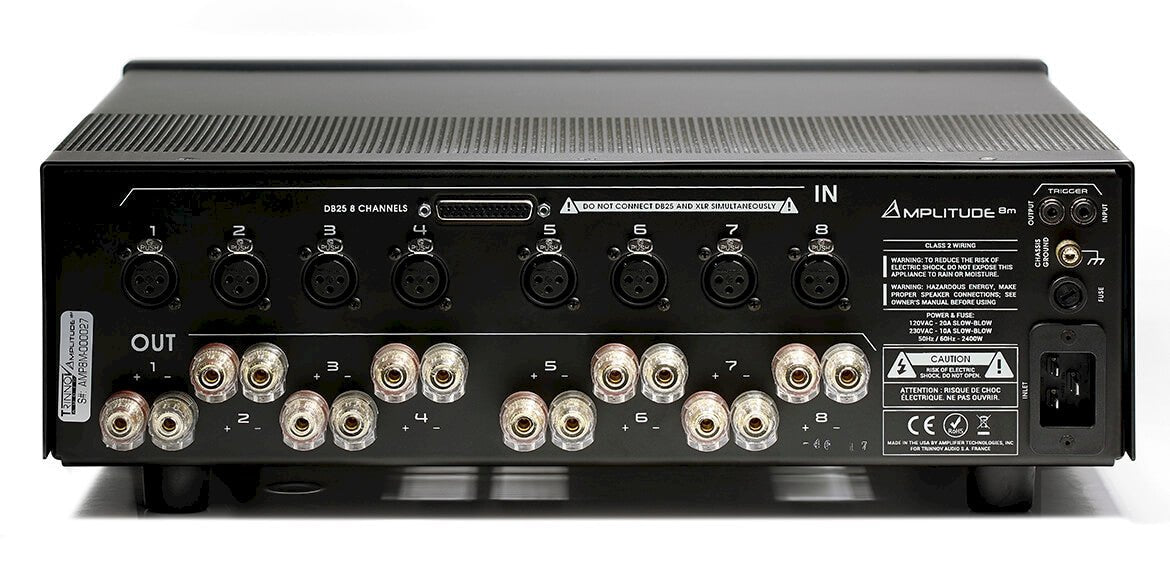

Audio Inputs & Outputs

  • Input Connectors: 1x Balanced (XLR) per channel
  • Input Polarity: Pin 2 +ve, Pin 3 -ve (for non-inverting output)
  • Input Impedance: 47 kΩ (each phase)
  • Output Connectors: 1x 5-way binding post per channel

Power Supply

  • Power Requirement: 117V / 230V 50/60 Hz AC (auto select)
  • Power Consumption:
  • Power Input: IEC C20
  • Mains Fuse:
  • 12V Trigger: 1x in, 1x out (mini-jack TS)

Weight & Dimensions

  • Dimensions (W x H x D) mm (including rack ears): 482 x 132 x 433
  • Dimensions (W x H x D) inches (including rack ears): 19” x 5 2/8” x 17”
  • Shipping Box Dimensions (W x H x D) cm: 61 x 61 x 42
  • Weight: 29.8 kg / 65.5 lbs
  • Shipping Weight/Volume: 36 kg / 0.156 M³

Warranty

  • Standard Warranty: 5 years
  • Transferable: Yes

~ That's Epic.

Designing solutions that connect families and enrich your home.

Description

Amplitude8m: Power and Performance Redefined
Like its larger counterpart, the Amplitude 8, the Amplitude 8m delivers exceptional performance tailored for luxury home theaters, all at a more accessible price point. Powered by the Hypex N-Core Class D output module, each of its eight channels can output up to 300 watts RMS at 4Ω, ensuring a dynamic and powerful audio experience.

Industry-Leading Noise and Distortion Control

The Amplitude8m features the lowest distortion and noise levels in the industry, maintaining this performance consistently across all frequencies. With a signal-to-noise ratio exceeding 120 dB, it ensures absolute silence during idle periods. This is crucial in theaters with extensive speaker setups, where even minimal noise from multiple speakers could become disruptive. The Amplitude8m eliminates this concern, ensuring pristine audio clarity.


Intelligent Power Management

Our amplifiers utilize advanced microprocessor control for turn-on delay and offer an automatic AC power recognition and configuration system. They can identify whether they are connected to 117V or 230V power and adjust their settings automatically.

Innovative Sleep Circuit

The Amplitude8m includes a new energy-efficient sleep mode:

  • After 10 minutes of idle time, power to the output modules is deactivated, and the front-panel LED starts flashing.
  • When an input signal is detected, the amplifier immediately resumes playback, ensuring effortless operation and reduced energy consumption.

Exceptional Audio Performance

The Amplitude8m upholds the highest standards in audio performance:

  • Intermodulation Distortion: Less than 0.05%
  • Signal-to-Noise Ratio: -120 dB referenced to rated output
  • Frequency Response: +0, -.5 dB, 5 Hz to 20 kHz, load independent

This results in audiophile-grade sound reproduction, delivering absolute silence in quiet scenes and unmatched clarity and realism, even at high volumes.


Unparalleled Cinema Experience

With the Amplitude8m, you’ll enjoy breathtaking soundscapes, free from background noise, during the most delicate movie scenes. Whether it’s music or dialogue, its performance ensures an immersive and realistic home theater experience at any volume level.


The Cinema Designer Integration

The Cinema Designer (TCD) software supports Epic Systems’ Altitude processors and Amplitude amplifiers, enabling system designers to create sophisticated, cinema-quality designs in minutes. With TCD, integrators can:

  • Craft technically impeccable cinema layouts.
  • Generate detailed support documents and aesthetic renderings.
  • Automatically apply Epic Systems’ proprietary speaker placement recommendations.

The Amplitude8m, paired with Altitude processors, ensures seamless integration and precision in even the most complex home theater setups.
