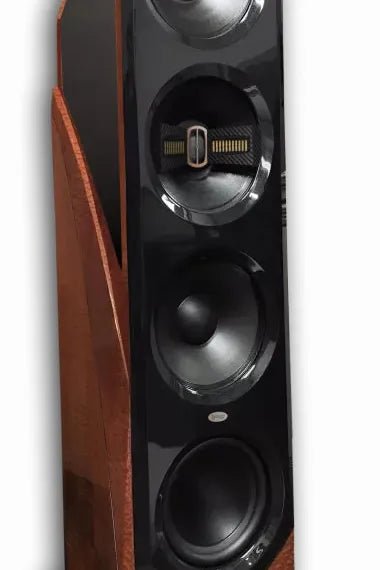

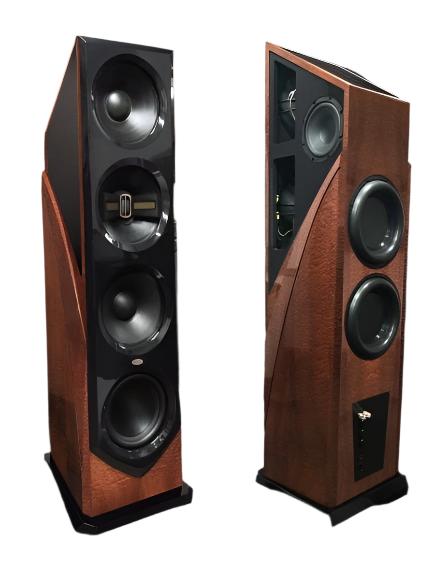

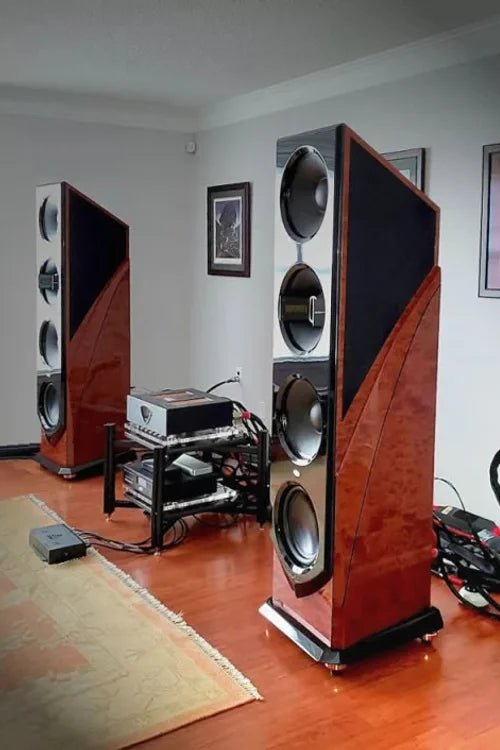

Valor Speakers From Legacy Audio

• Application: Sequential sound field reconstruction system, auto-setup with calibrated microphone
• Processor: Wavelet 2 input, 8 output, 56 bit DSP, Room Correction/Stereo Unfold algorithm
• System Type: 8 Driver, 4 way system with specialized 3 driver ambient array
• Tweeter: Dual 4” AMT bridge-mounted in post convergent array
• Midrange: 1.5” coaxial, titanium/polyester diaphragm, precision waveguide
• Midwoofer: 14” carbon/pulp curvilinear cone, neo motor, dipolar
• Bass: Dual 14” carbon/pulp curvilinear cone, neo motor in super cardioid array
• Subwoofer: Dual 12” aluminum diaphragms, 480 oz. motors, cast frame, 3” dual 4 layer voice coils
• Passive Radiator: Dual 12” patented symmetrically loaded with 2” travel
• Low Frequency Alignment: Hybrid cardioid pattern, dual rear radiator, down-firing sub
• Inputs: 1 pair binding posts for upper range, 2 XLR balanced for bass, sub, 1 XLR for STEREO UNFOLD
• Internal Amplification: Subs- 1kW, Bass- 750W, Mid-500W, Ambient Array-500W
• Recommended Amplification: 1 external channel of 60 watts or greater required for high frequencies
• Freq. Response (Hz, +/-2dB): 12Hz-30kHz
• Impedance: XLR 10k, binding posts 4 ohms
• Sensitivity: 100.5 dB (2.83V@1m)
• Crossover (Hz): 65, 800, 6k
• Cabinet Dimensions HxWxD (inches): Cabinet 67” H x 16.25” W x 18” D, Base 1.5” H x 20.75” W x 20.75” D
• Weight: 288 lbs each

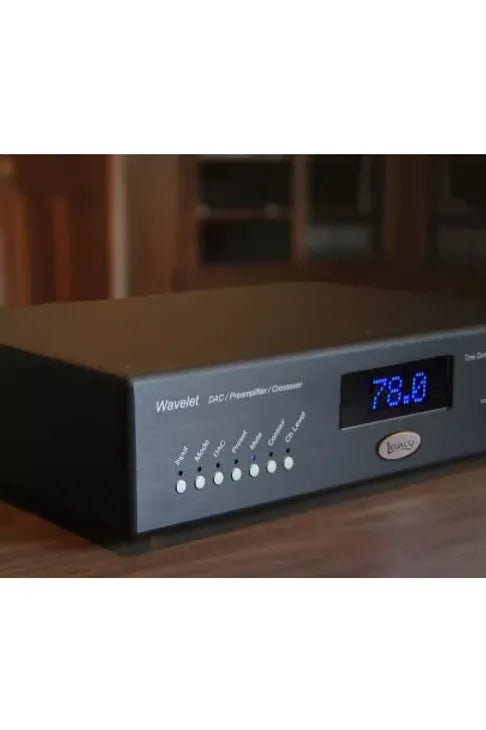

Experience sonic wizardry brought to life through the collaborative efforts of Legacy's Chief Engineer, Bill Dudleston, and Bernt Böhmer of Böhmer Audio, Sweden. Dudleston's 34 years of expertise in sound field reconstruction, combined with Böhmer's acclaimed mathematical algorithms, have given birth to the extraordinary Wavelet processor. This groundbreaking technology addresses room resonances and digital harshness, while the innovative Stereo Unfold unveils hidden layers of spatial and harmonic cues lost in traditional playback.

The Valor system revolutionizes acoustic steering by ensuring precise representation of lateral and vertical information in the time domain. Through a two-stage process, the Room Correction algorithm eliminates unwanted early reflections from floors, ceilings, and walls, enabling the Stereo Unfold algorithm to restore the encoded vectors in the L/R information. The result is an enhanced sound experience with remarkable depth, openness, and spaciousness. Each performer occupies their distinct dimensional space, localization is more precise, and the timbre exudes richness—exemplified by the resonant reed and bell characteristics of a saxophone. Feel the air accelerate as the hi-hat pedal pumps, brushes gracefully circle the snare head, and the floor tom resounds with lively bounce. Vocals and stringed instruments emanate natural harmonics that surpass the limits of traditional stereo playback. Prepare to be astounded by the remarkable placement of sound images.

• Download the Valor Speakers Manual
