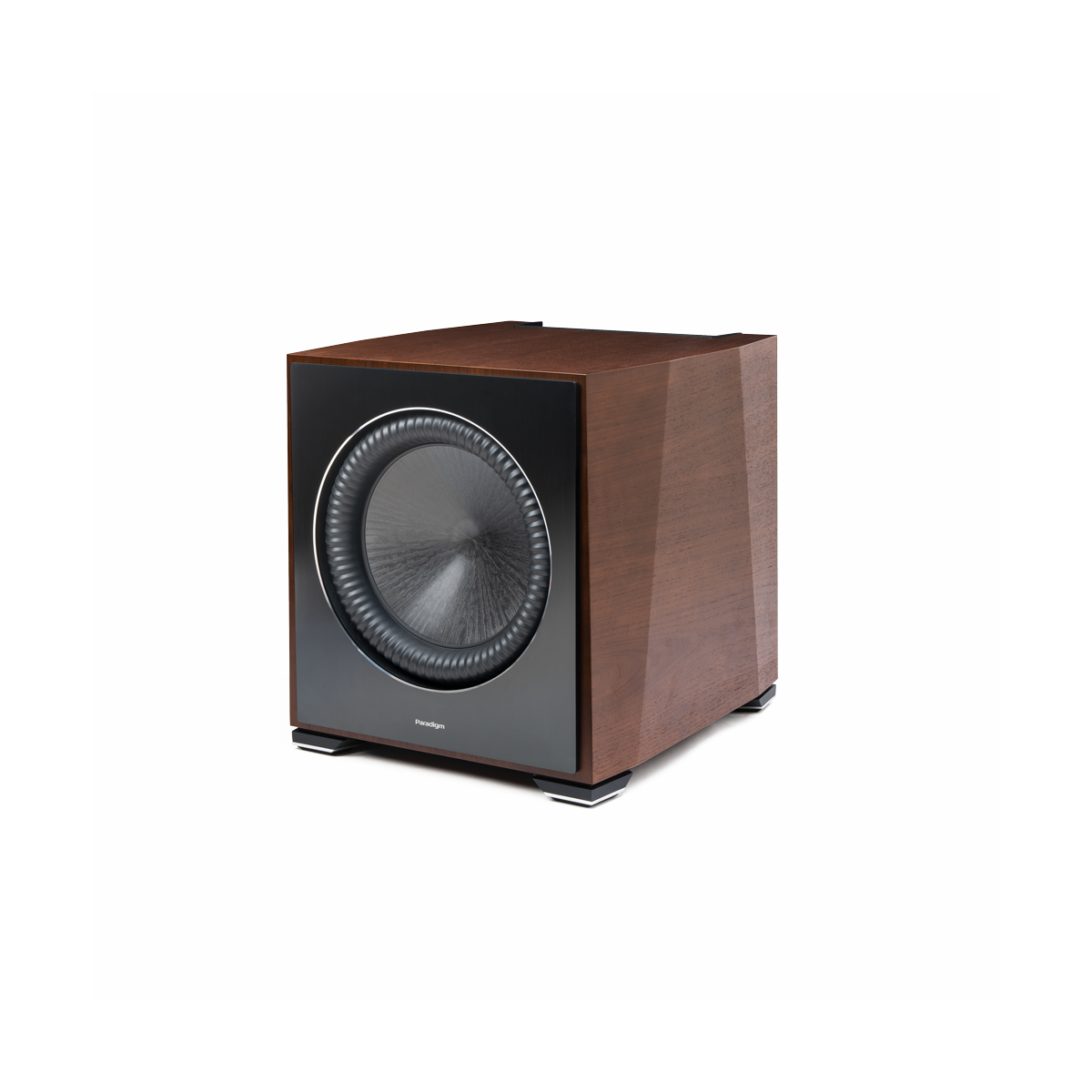

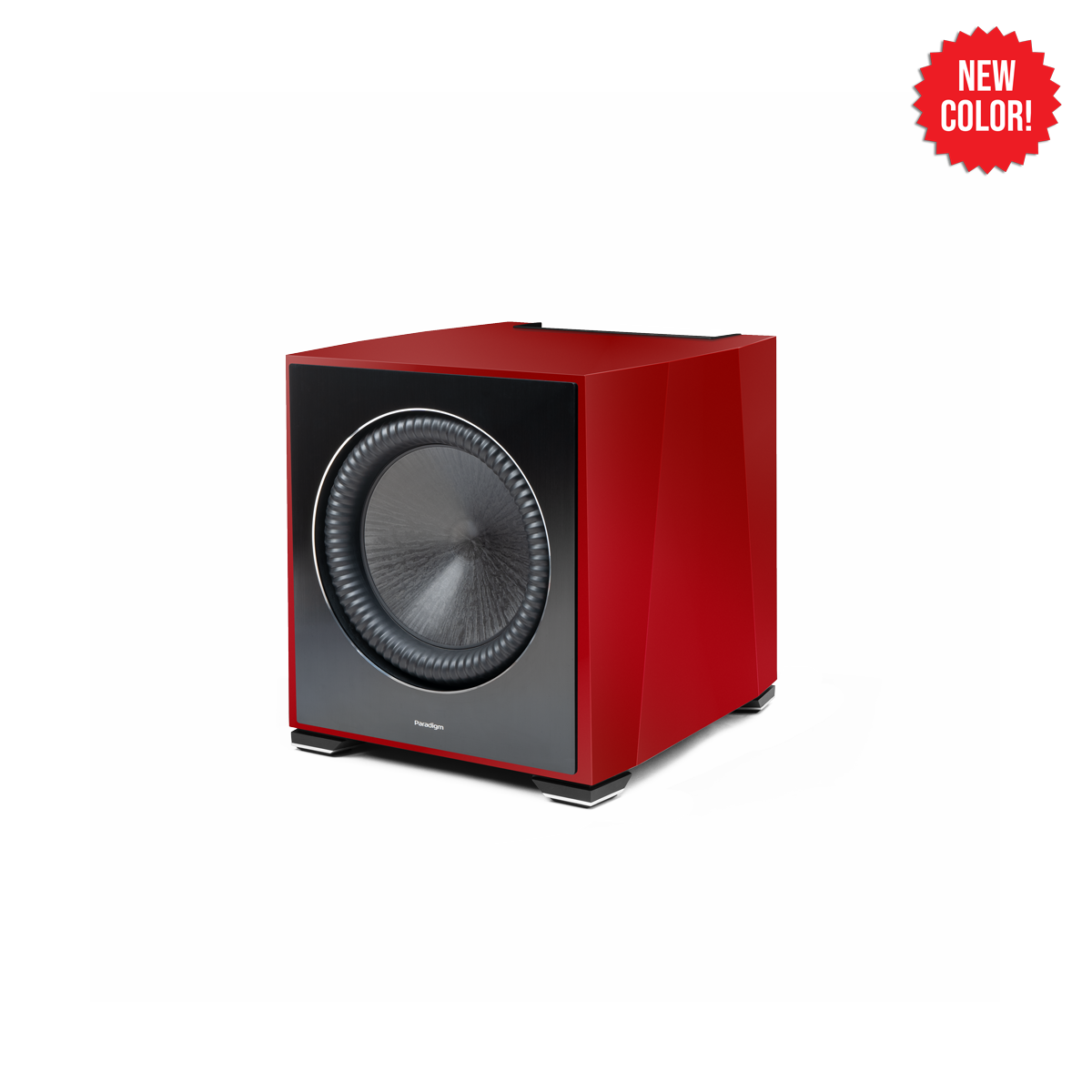

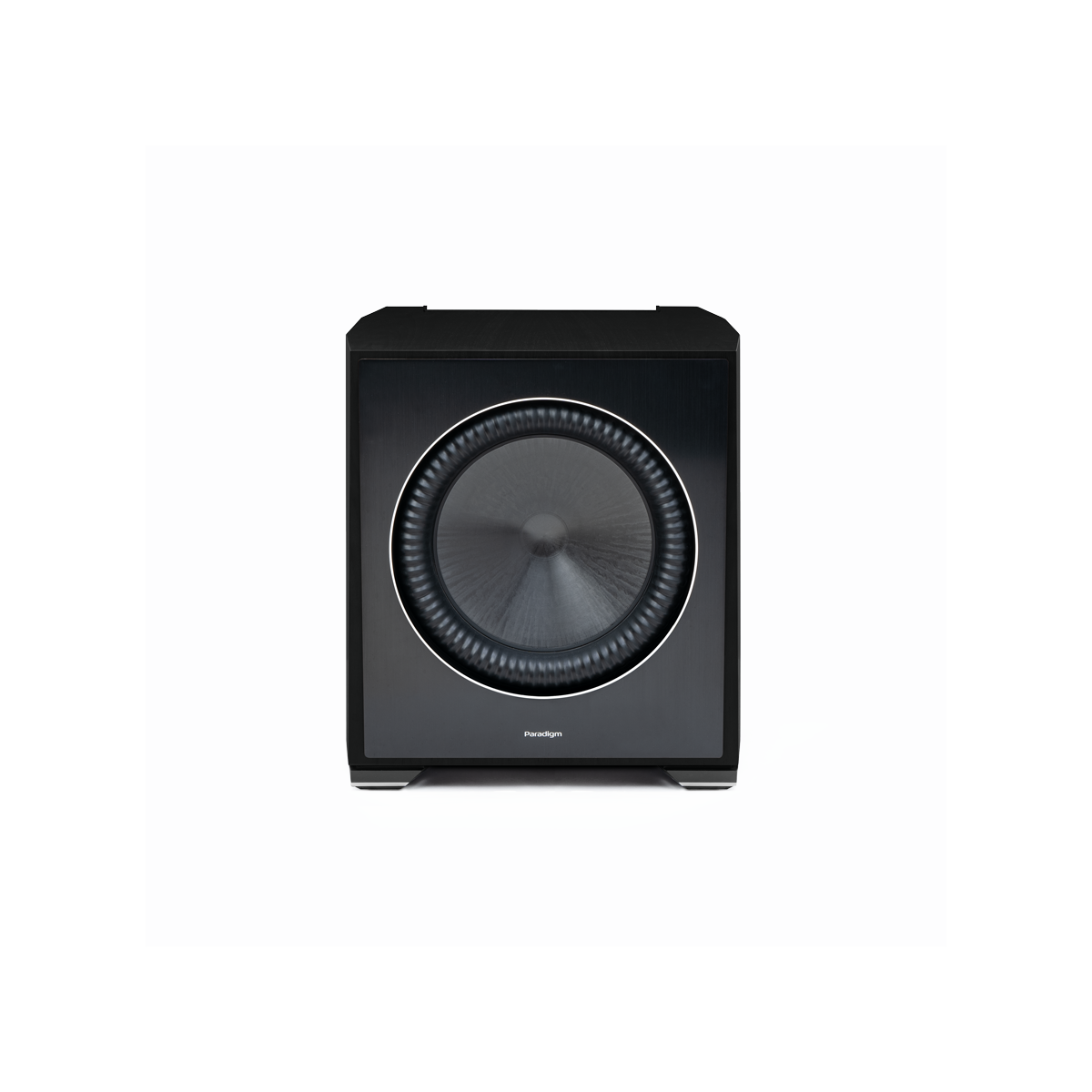

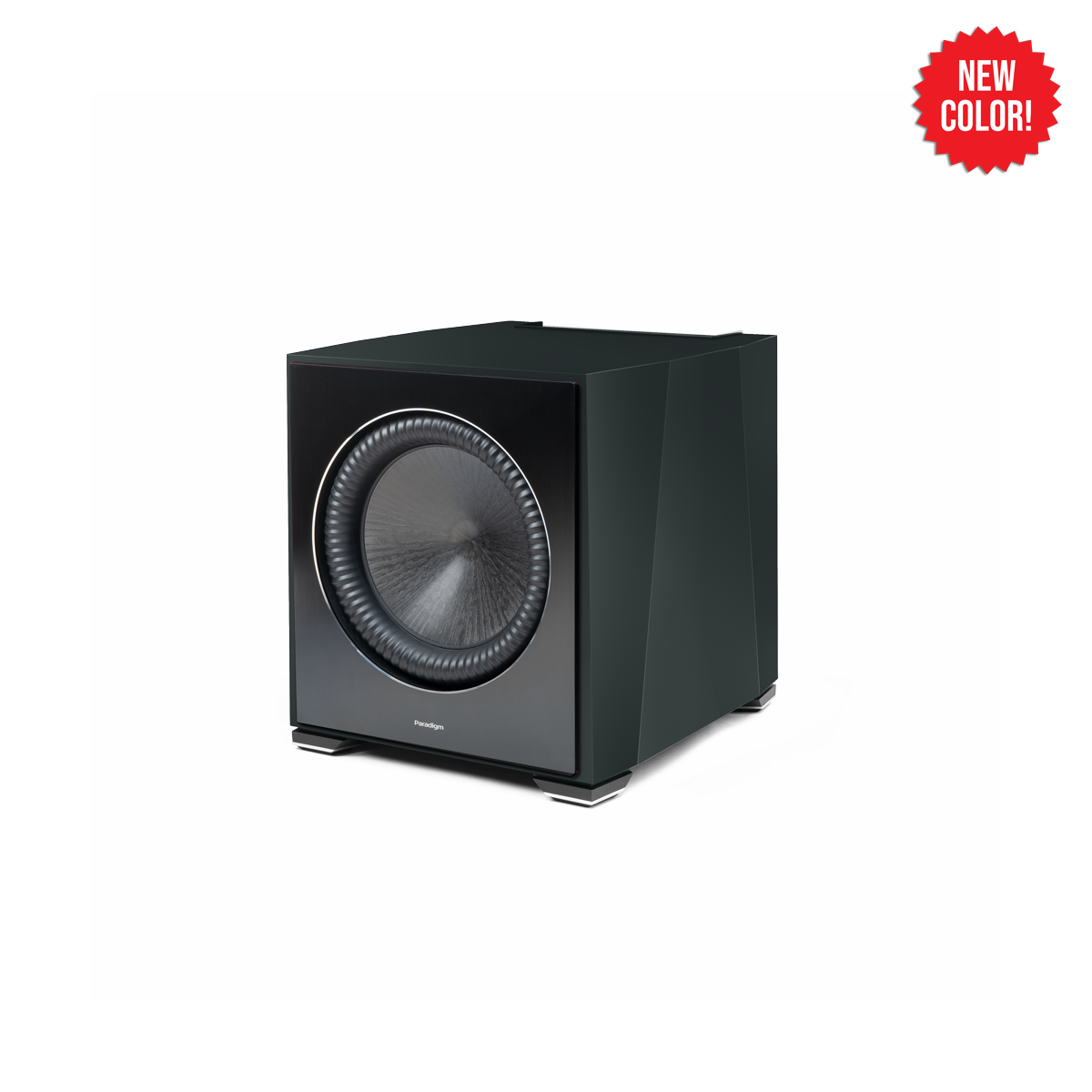

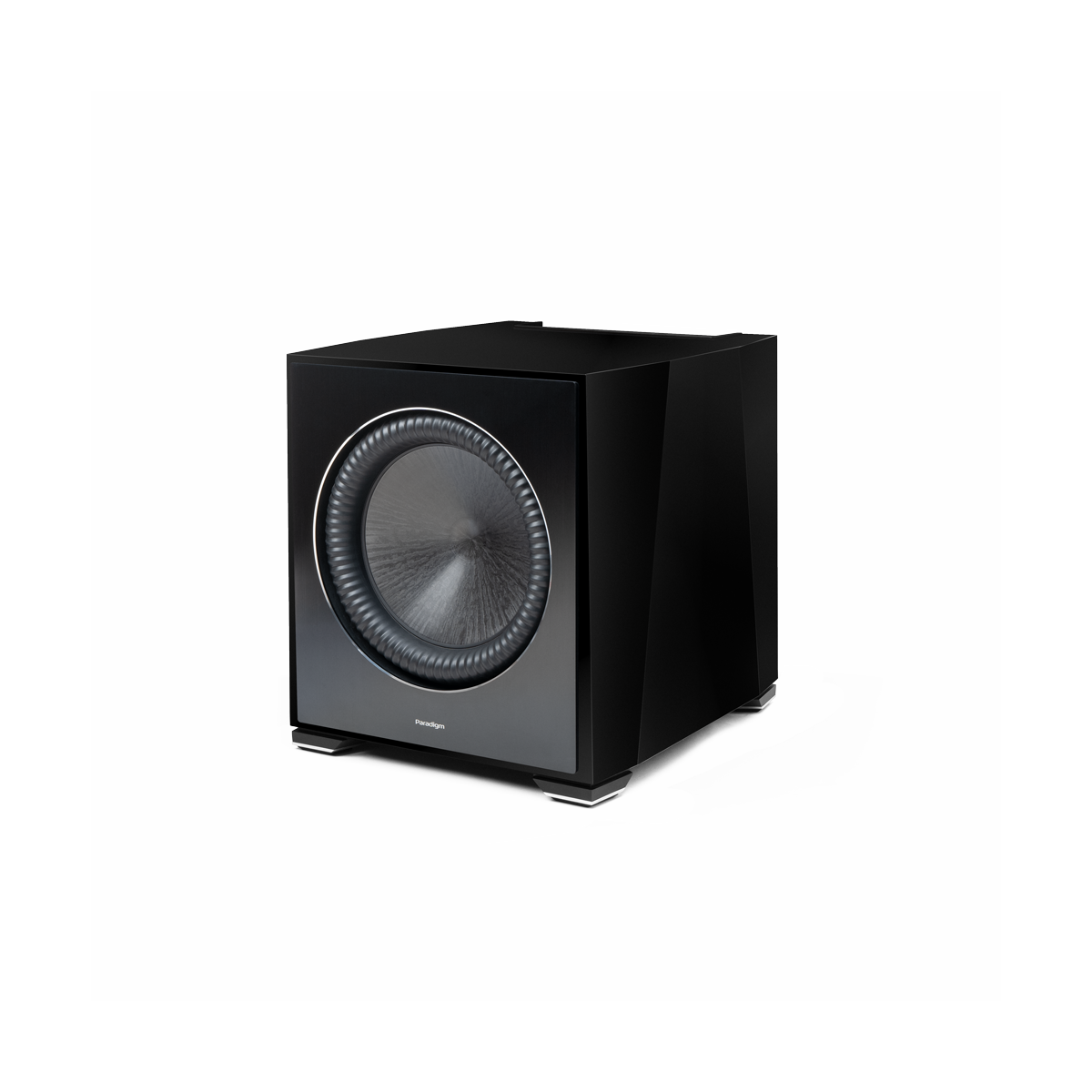

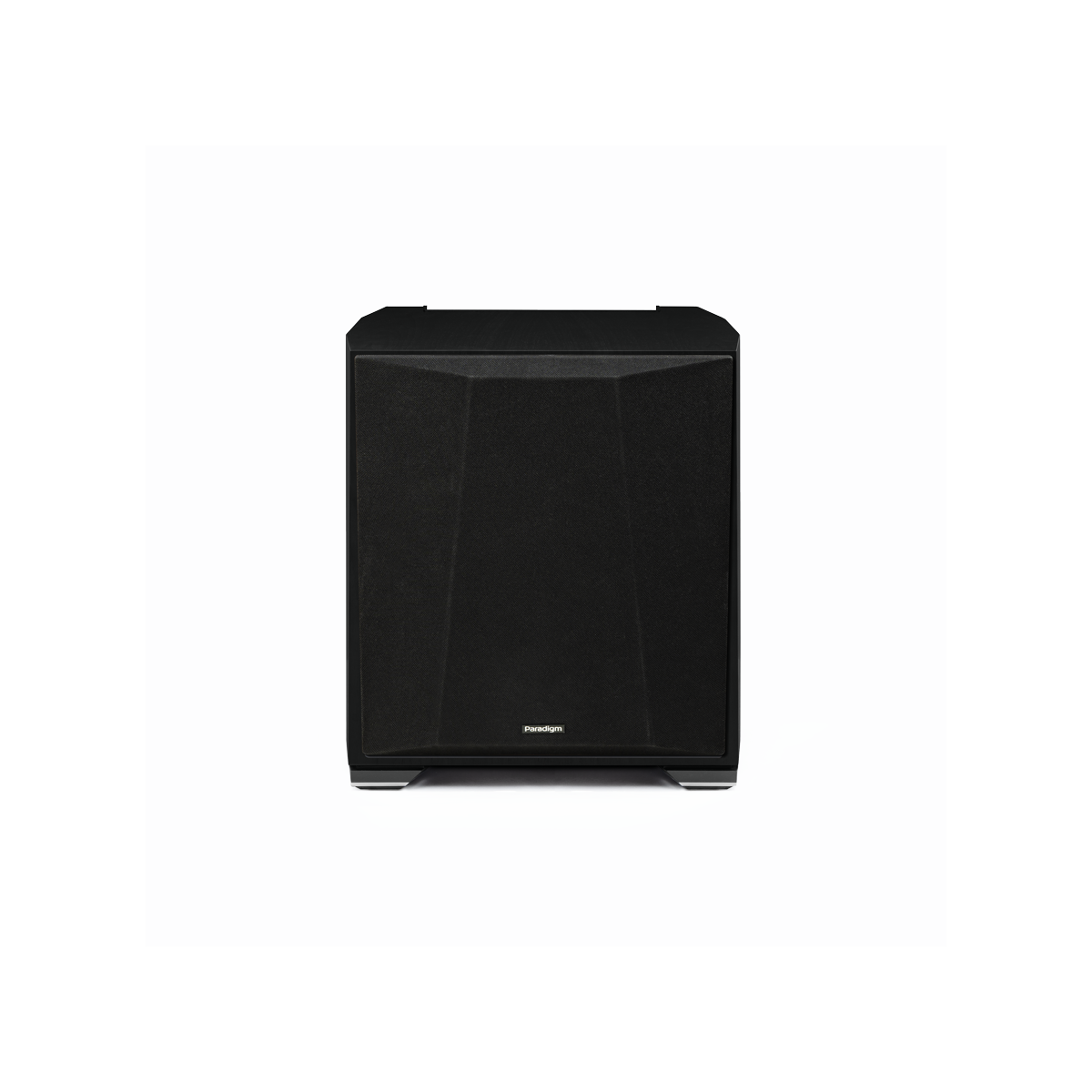

XR 11

DESIGN

• 11” (279 mm) ultra-high excursion driver with Trilinear Suspension System and Active Ridge Technology (ART™)
• Sealed enclosure with Cascade-Fusion™ bracing and advanced Shock-Mount™ system
• Built-in Class-D amplifier
• Smartphone app control
• Includes Anthem Room Correction (ARC®)

AMPLIFIER FEATURES

• Auto-On / Off
• Trigger On / Off

ROOM CORRECTION

• ARC Genesis (microphone included)

FREQUENCY RESPONSE (ON-AXIS)

• ±3dB from 20 Hz to 140 Hz

LOW FREQUENCY DRIVER

• 11” (279 mm) ultra-high-excursion CARBON-X unibody bass driver
• Trilinear Suspension System and Active Ridge Technology (ART™)
• 1.5” high-temperature voice coil

EFFECTIVE PISTON AREA (SD)

• 66 sq in / 0.043 sq m

EFFECTIVE DISPLACEMENT

• 183.1 cu in / 3 L

LOW FREQUENCY RESPONSE

• 14 Hz (DIN)

AMPLIFIER POWER

• Power measurements underway to ensure compliance with new FTC regulations

INPUTS

• Unbalanced Inputs: Stereo or Mono (dual RCA jacks) / LFE RCA jack
• Balanced Inputs: One Balanced XLR (LFE)
• Speaker/High-Level Inputs: Left and right speaker level inputs

INPUT GROUNDING

• Isolated

POLARITY

• 0° or 180°

PHASE

• Variable from 0° to 180°

DIMENSIONS (H × W × D)

• 16.2” x 15.3” x 16.9” (41.2 cm x 38.8 cm x 42.9 cm)

WEIGHT

• 65.1 lb / 29 kg each

FINISHES

• Gloss: Piano Black & Midnight Cherry
• Satin: Walnut & Black Walnut
