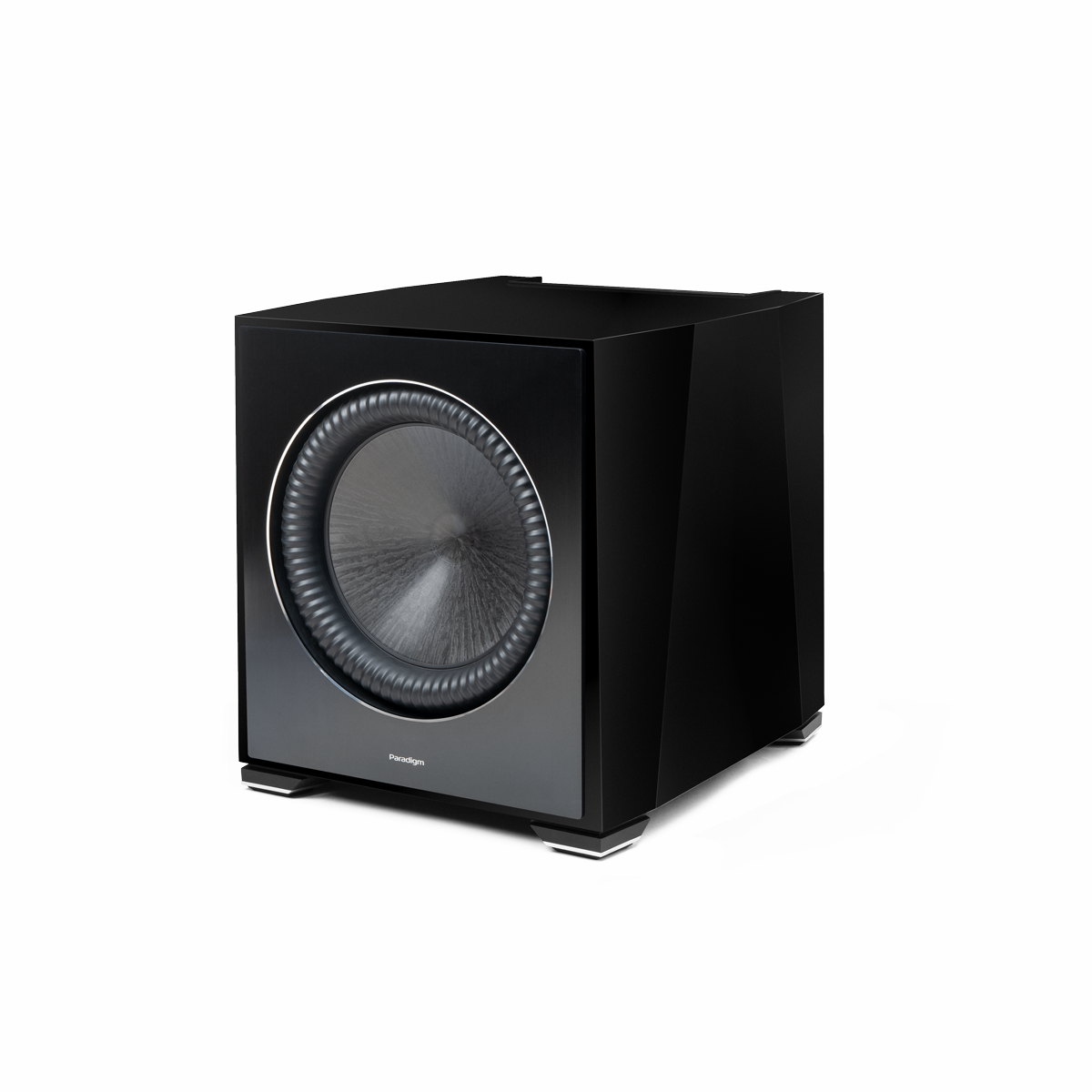

XR 13

DESIGN

• 13” (330 mm) ultra-long excursion driver with Trilinear Suspension System and Active Ridge Technology (ART™)
• Sealed cabinet with Cascade-Fusion™ bracing and advanced Shock-Mount™ system
• Built-in Class-D amplifier for efficient power delivery
• Smartphone app control for seamless adjustments
• Includes Anthem Room Correction (ARC®) for optimized audio performance

AMPLIFIER FEATURES

• Auto-On / Off
• Trigger On / Off

ROOM CORRECTION

• ARC Genesis (microphone included)

FREQUENCY RESPONSE (ON-AXIS)

• ±3dB from 17 Hz to 140 Hz

LOW FREQUENCY DRIVER

• 13” (330 mm) ultra-long excursion CARBON-X unibody bass driver
• Trilinear Suspension System and Active Ridge Technology (ART™)
• 2” high-temperature voice coil

EFFECTIVE PISTON AREA (SD)

• 93.7 sq in / 0.06 sq m

EFFECTIVE DISPLACEMENT

• 366.1 cu in / 6 L

LOW FREQUENCY RESPONSE

• 12 Hz (DIN)

AMPLIFIER POWER

• Power measurements in progress to comply with new FTC regulations

INPUTS

• Unbalanced Inputs: Stereo or Mono (dual RCA jacks) / LFE RCA jack
• Balanced Inputs: One Balanced XLR (LFE)
• Speaker/High-Level Inputs: Left and right speaker level inputs

INPUT GROUNDING

• Grounded

POLARITY

• 0° or 180°

PHASE

• Adjustable from 0° to 180°

DIMENSIONS (H × W × D)

• 18.8” x 17.3” x 19.4” (47.8 cm x 43.8 cm x 49.3 cm)

WEIGHT

• 103.8 lb / 47.1 kg

FINISHES

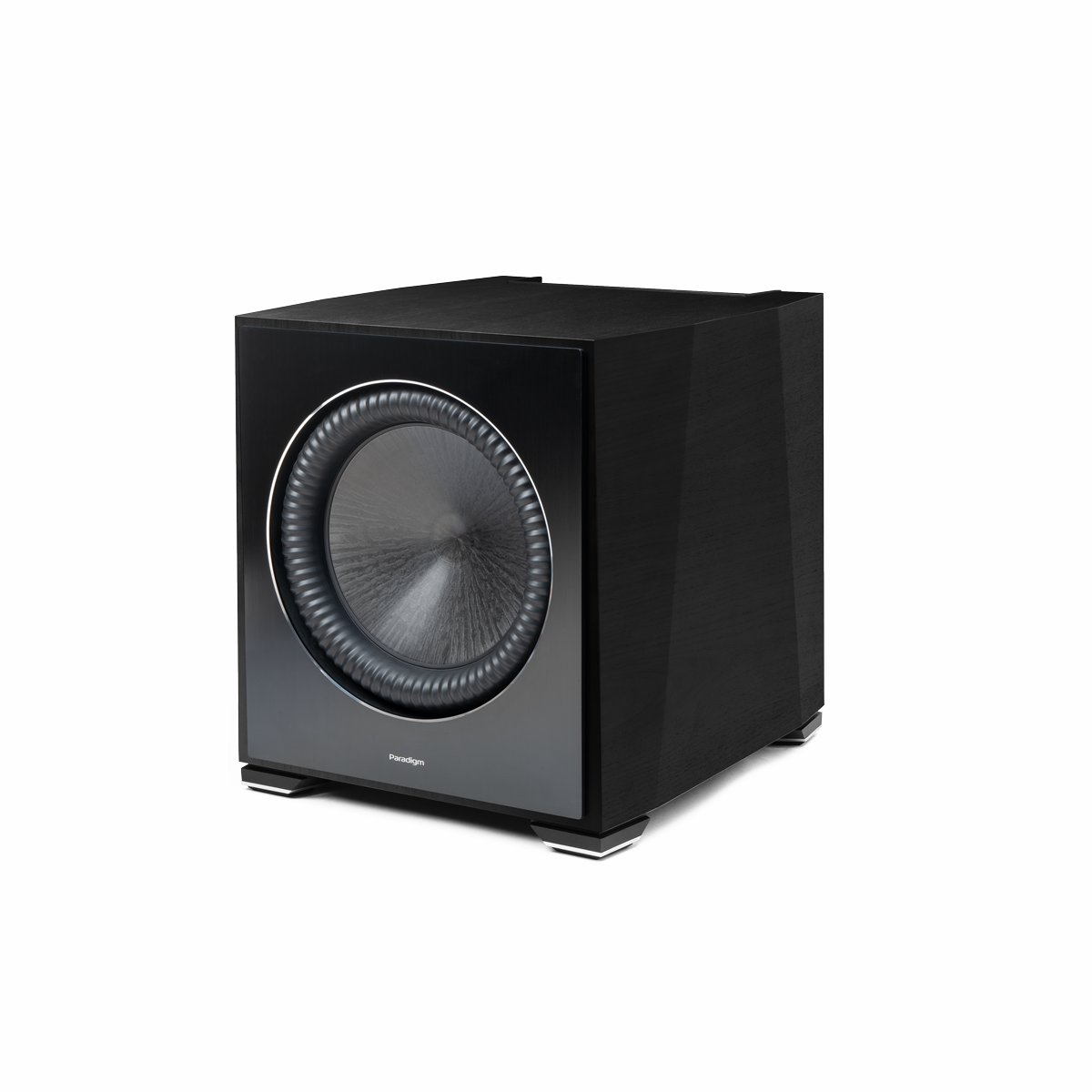

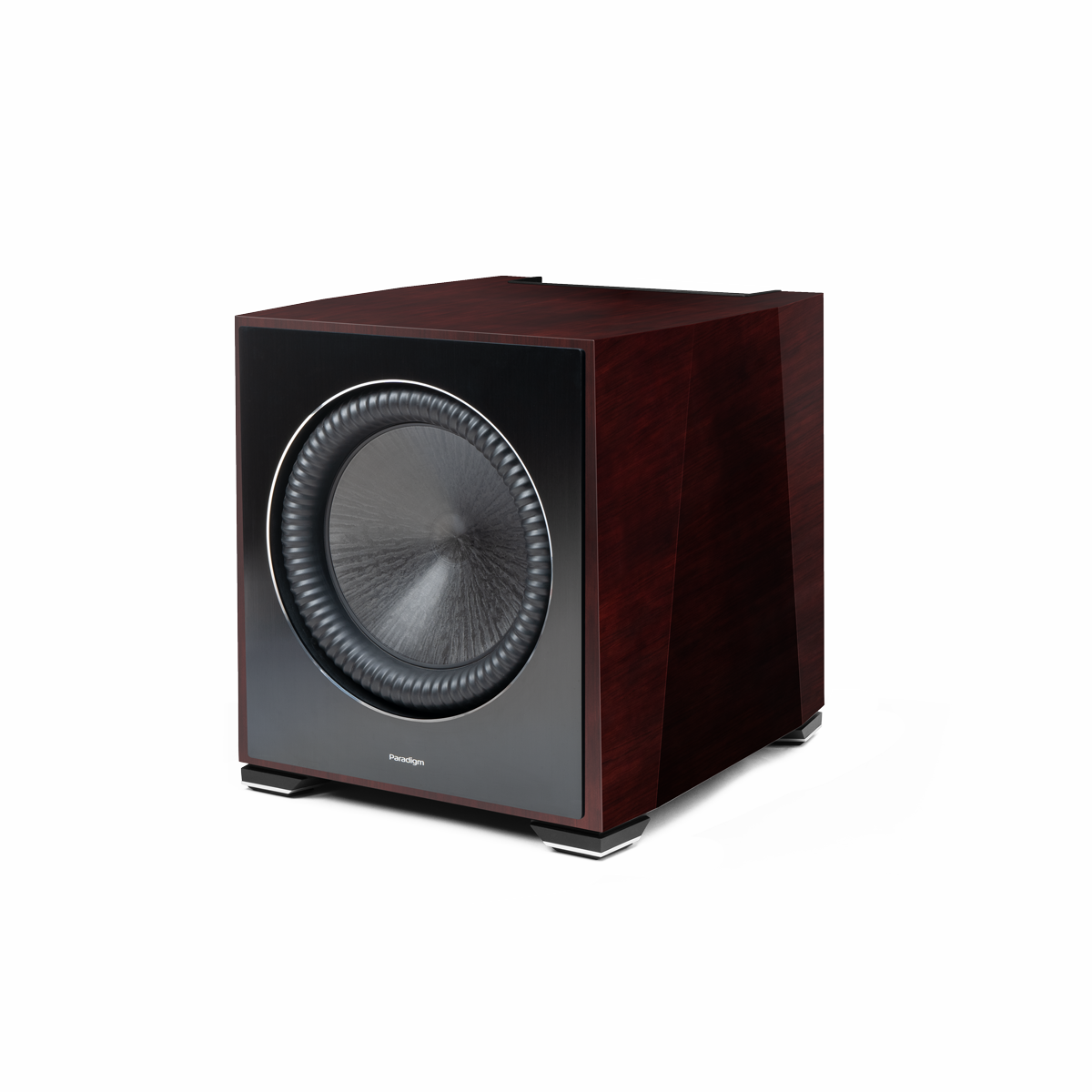

• Gloss: Piano Black & Midnight Cherry

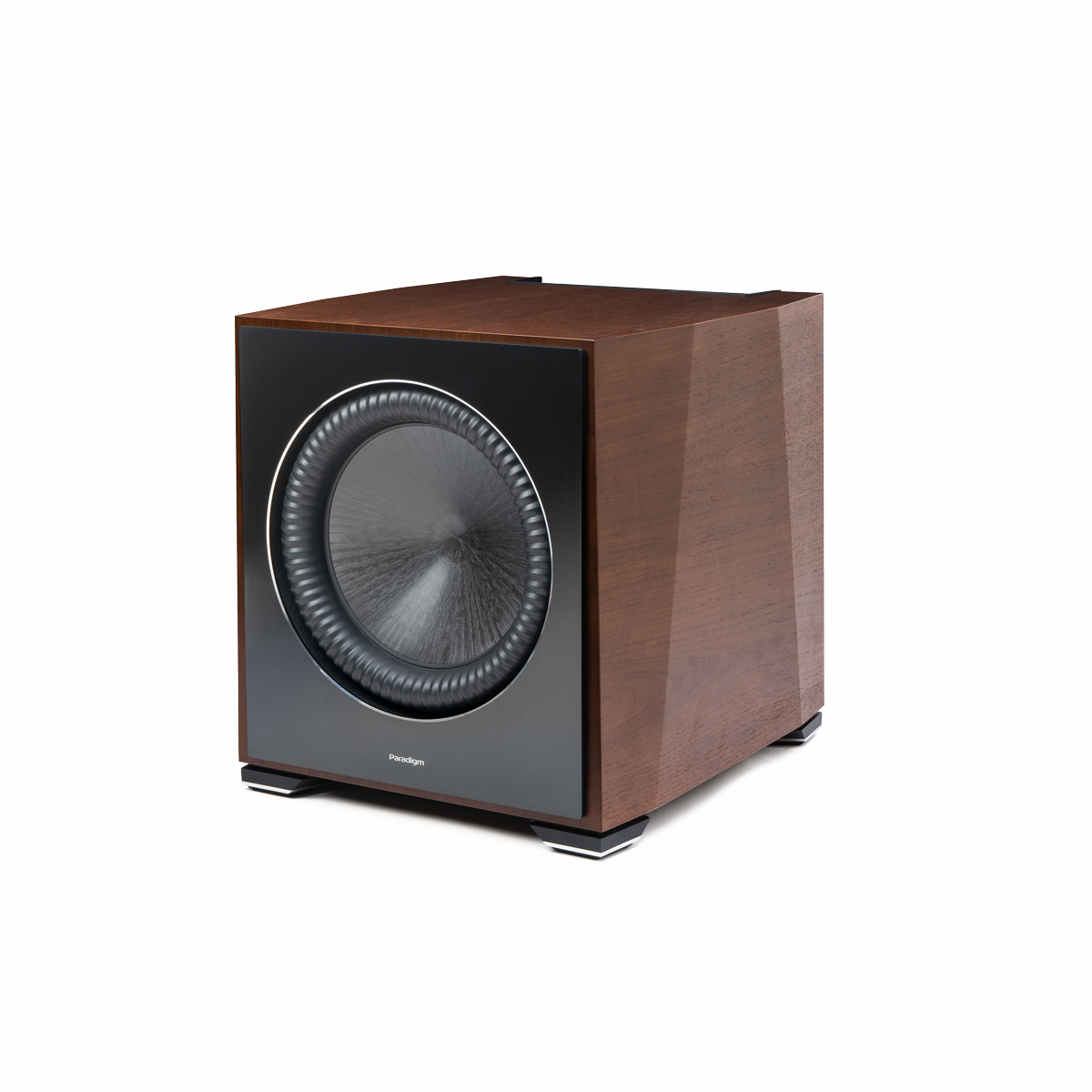

• Satin: Walnut & Black Walnut
