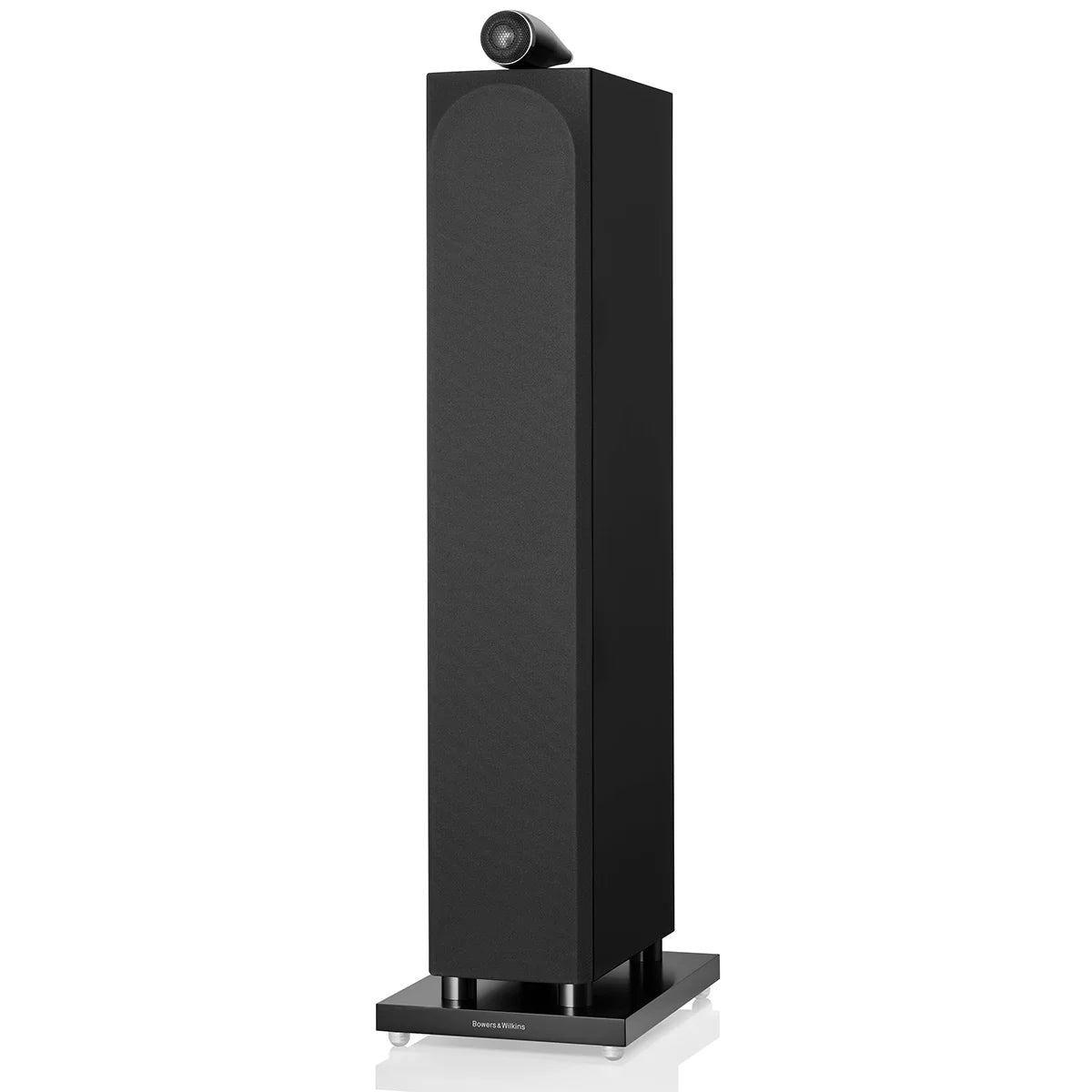

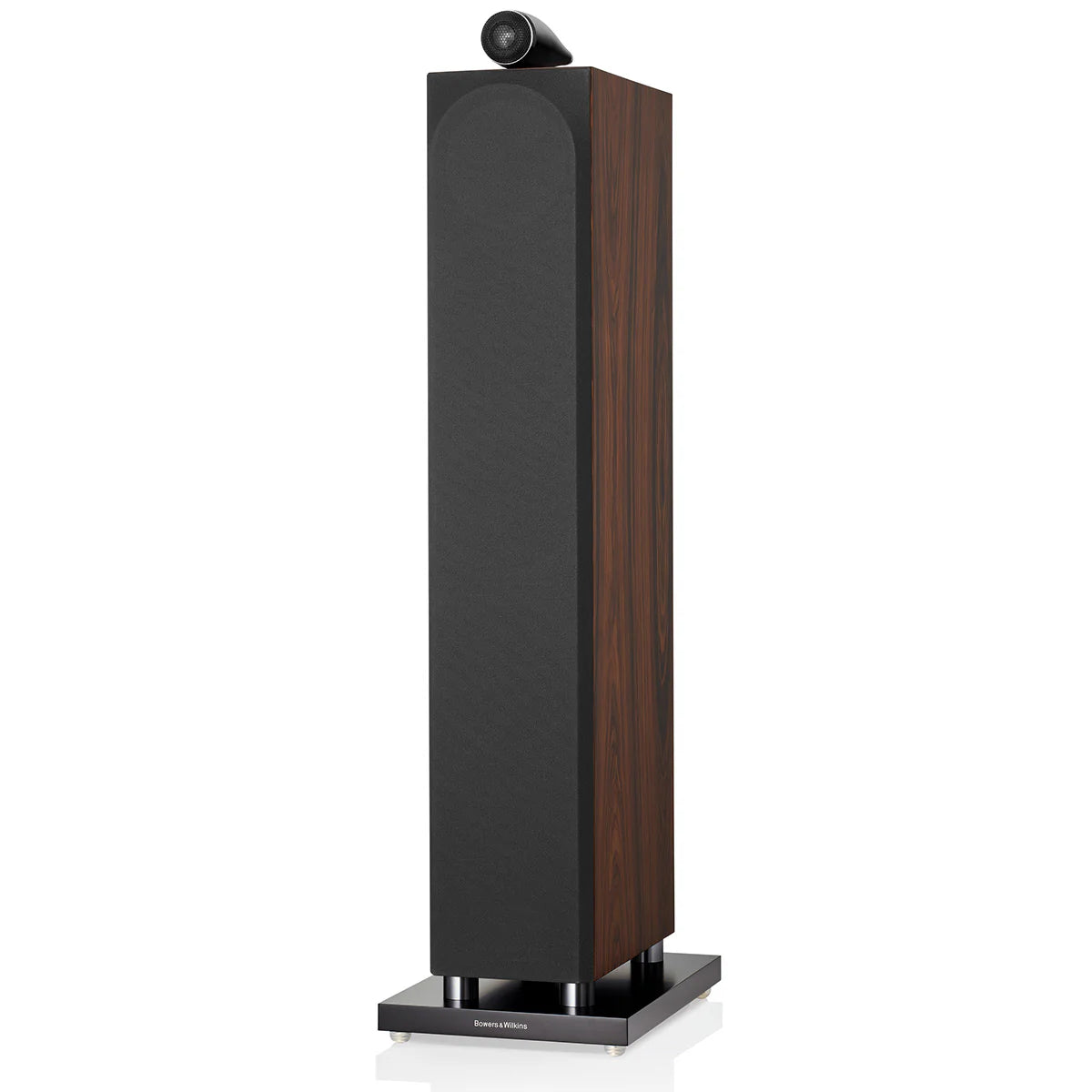

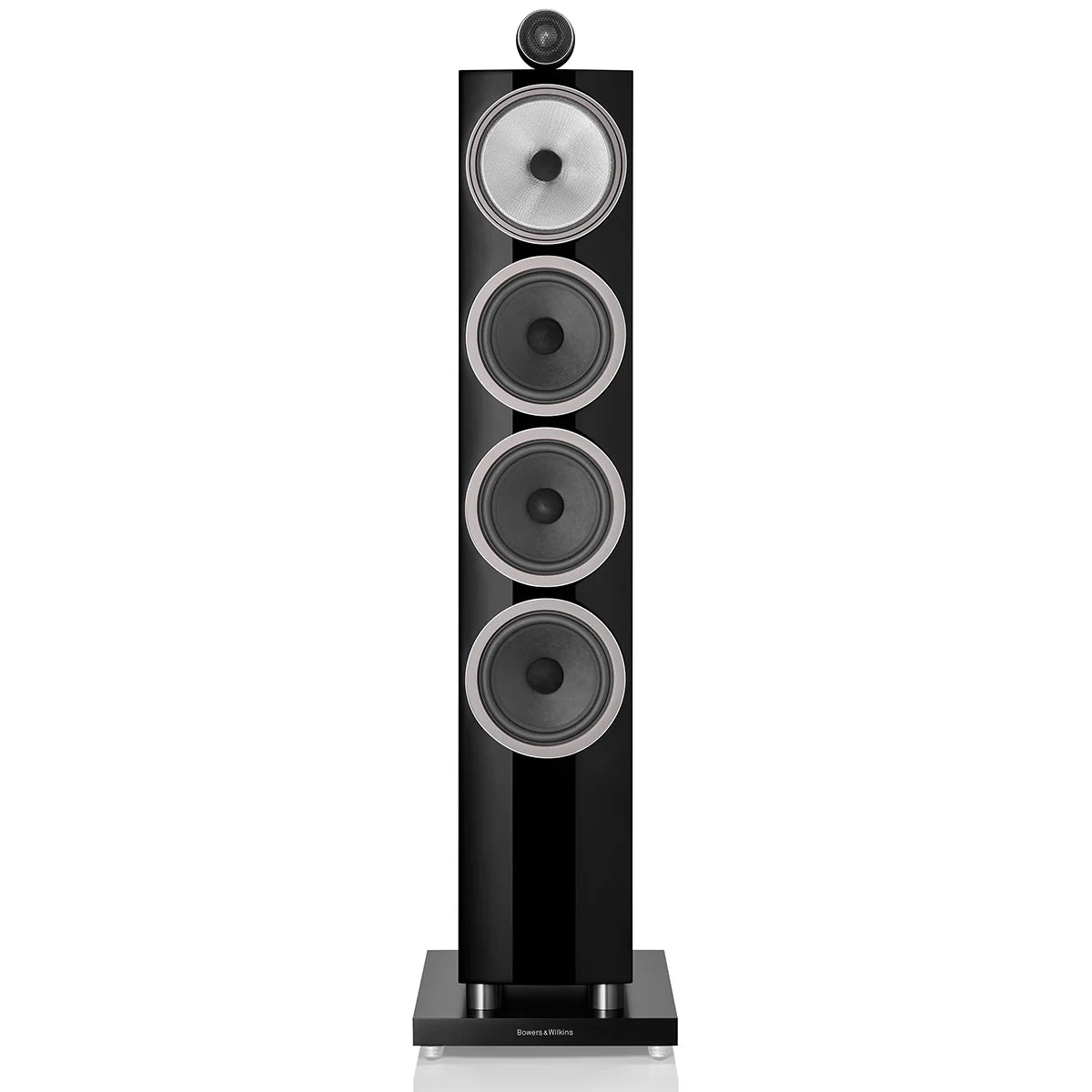

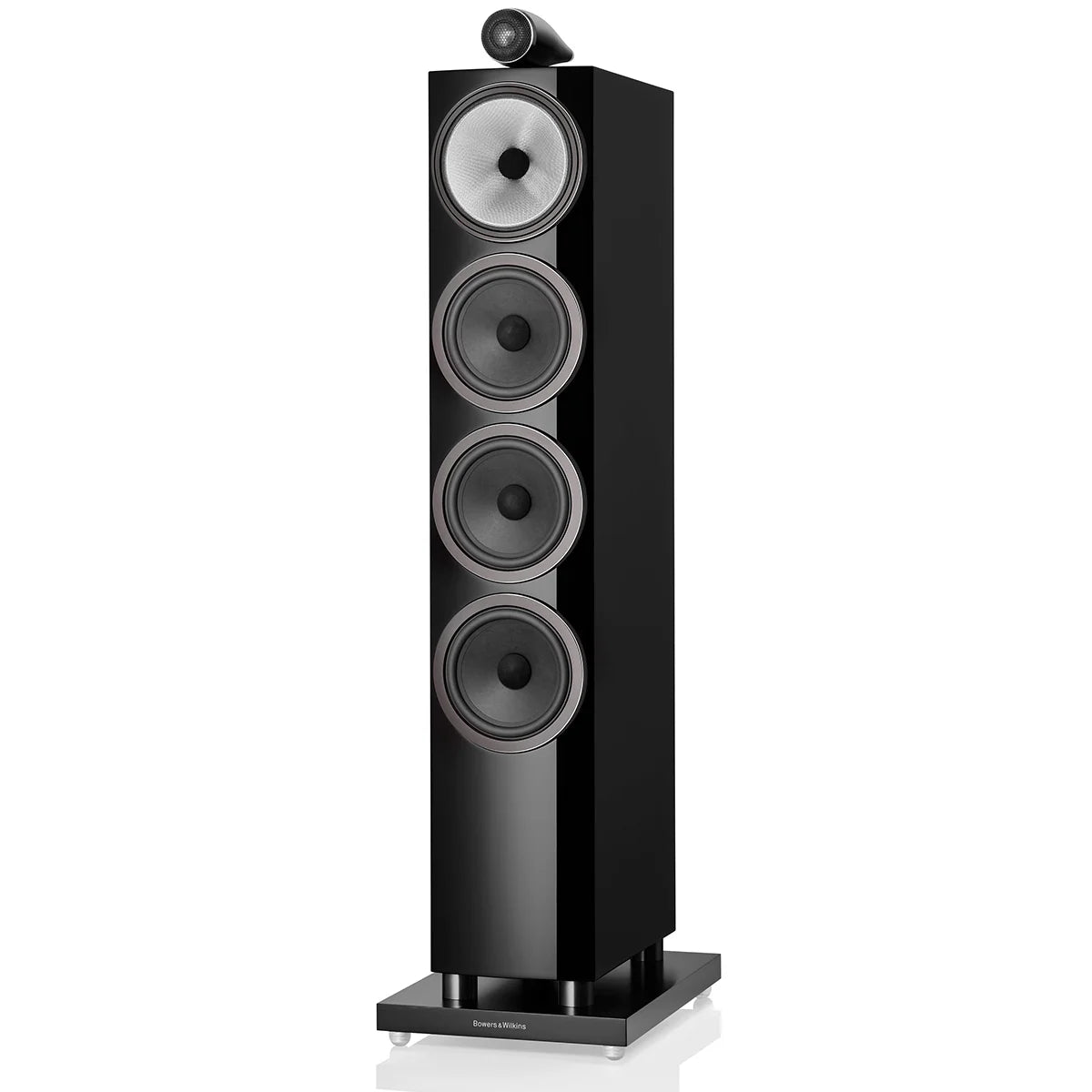

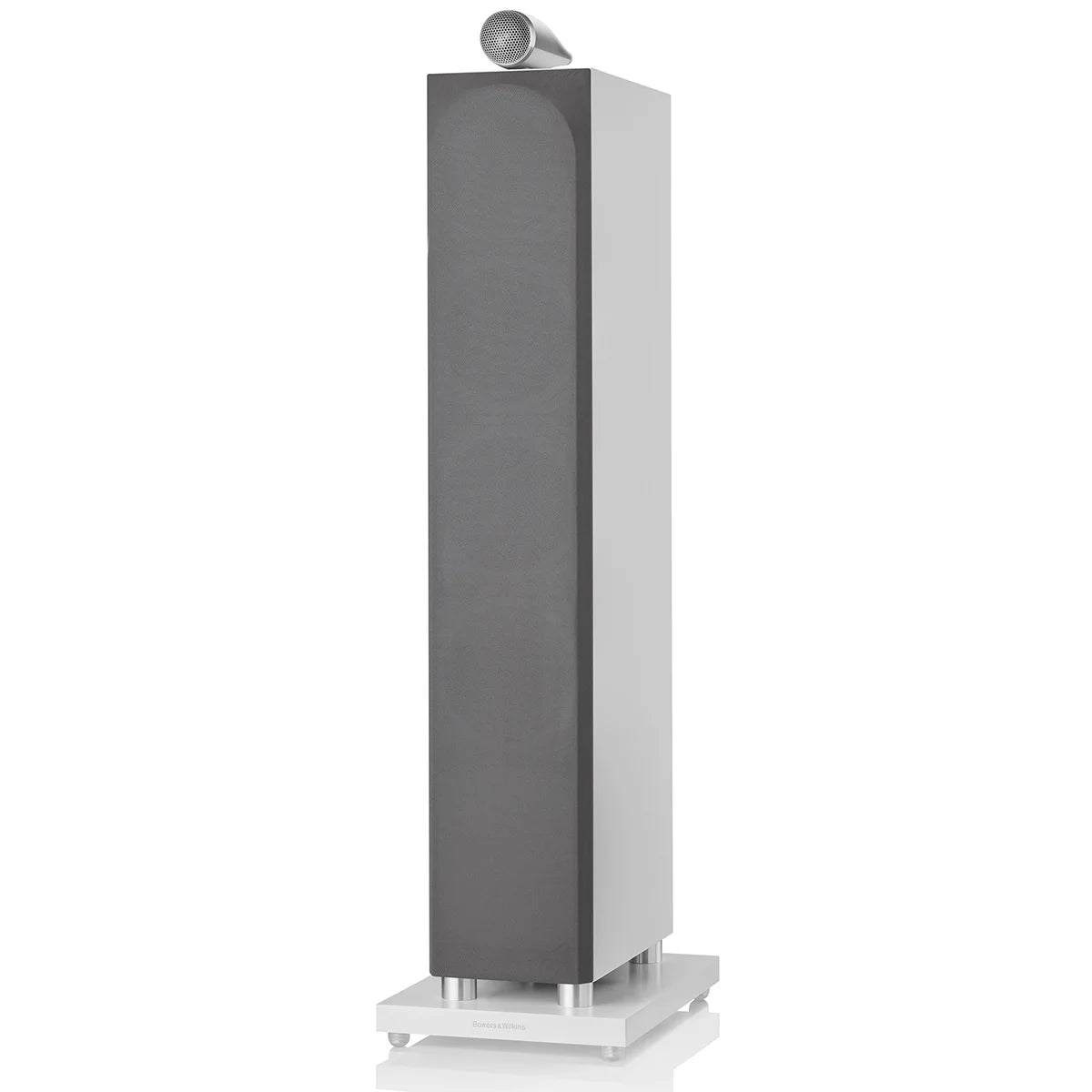

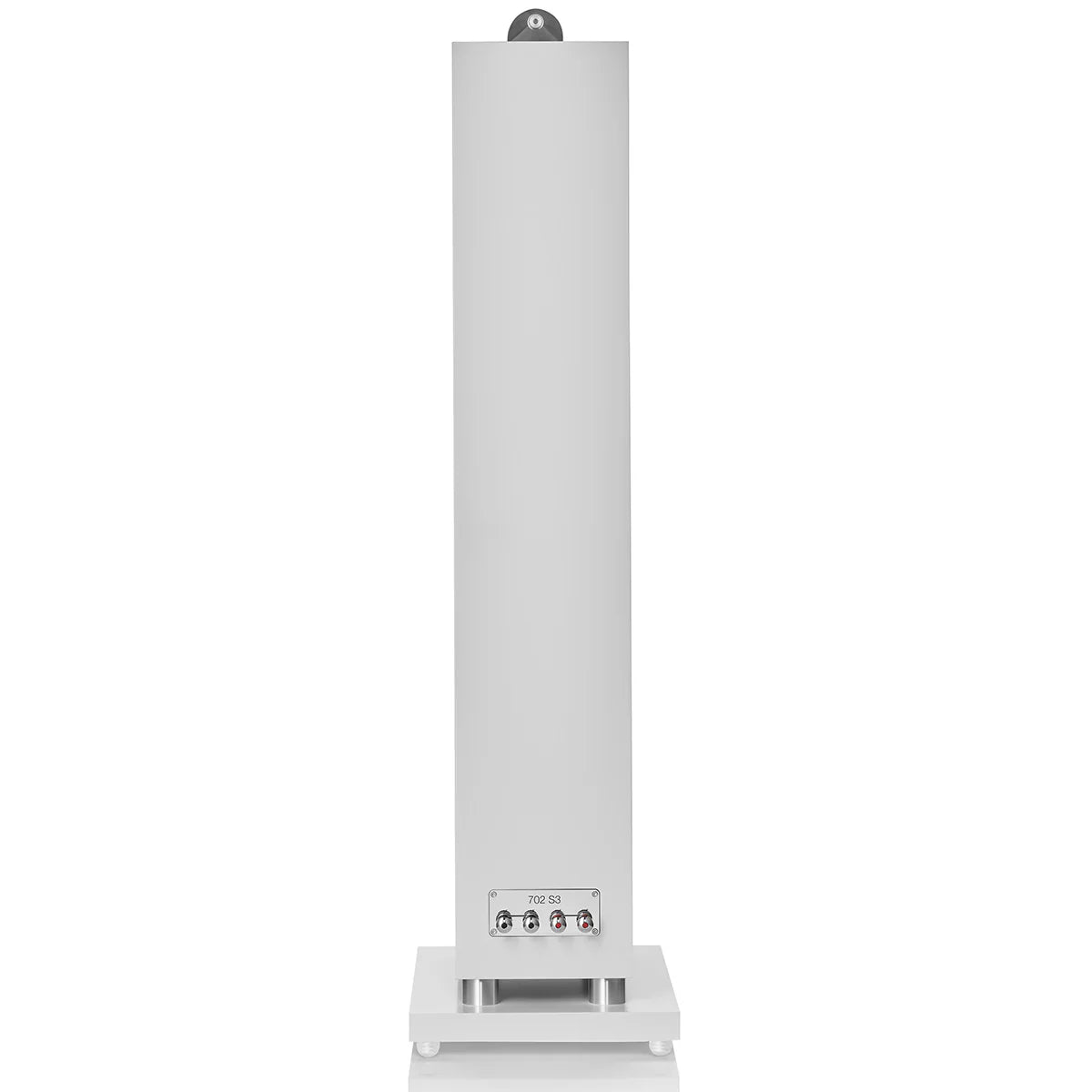

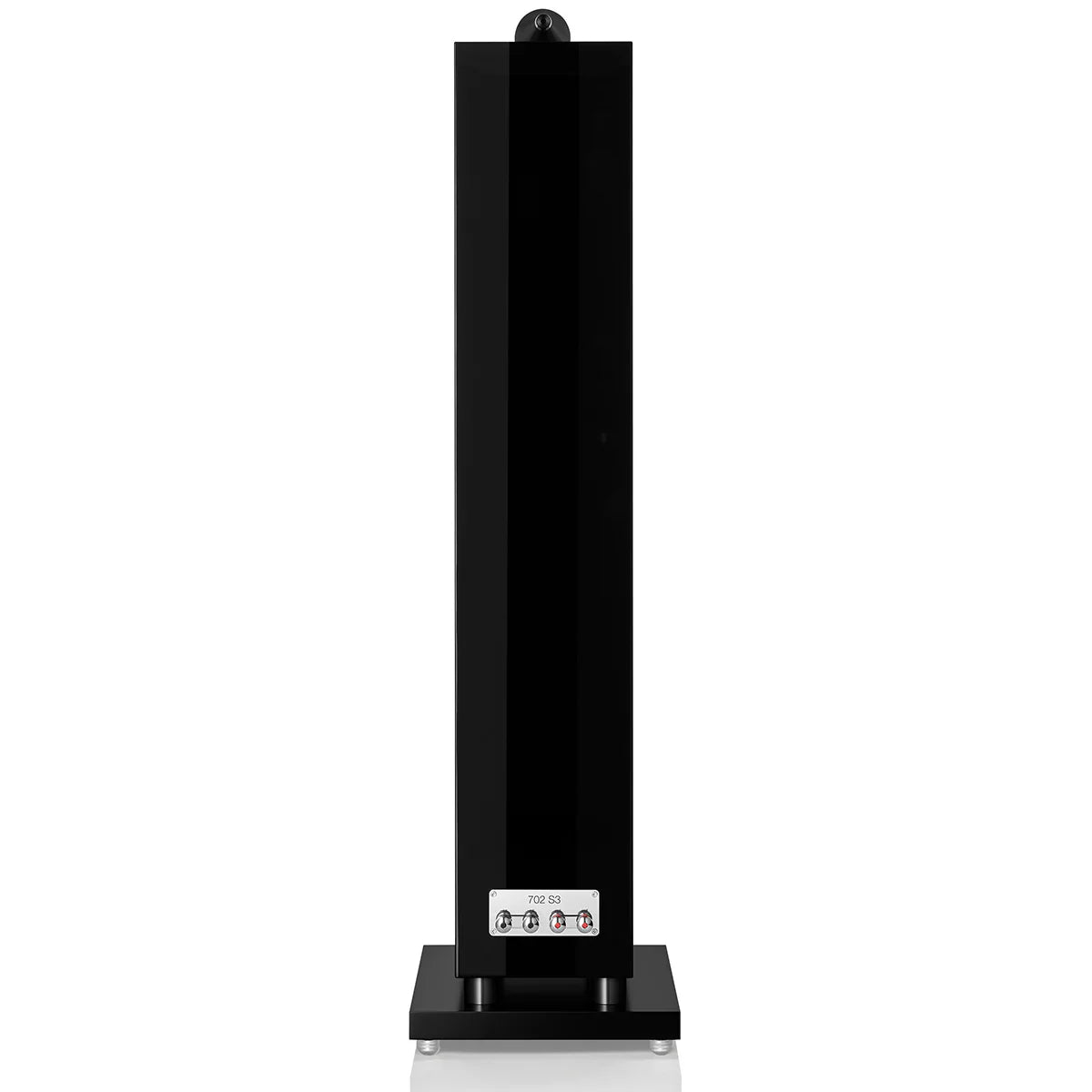

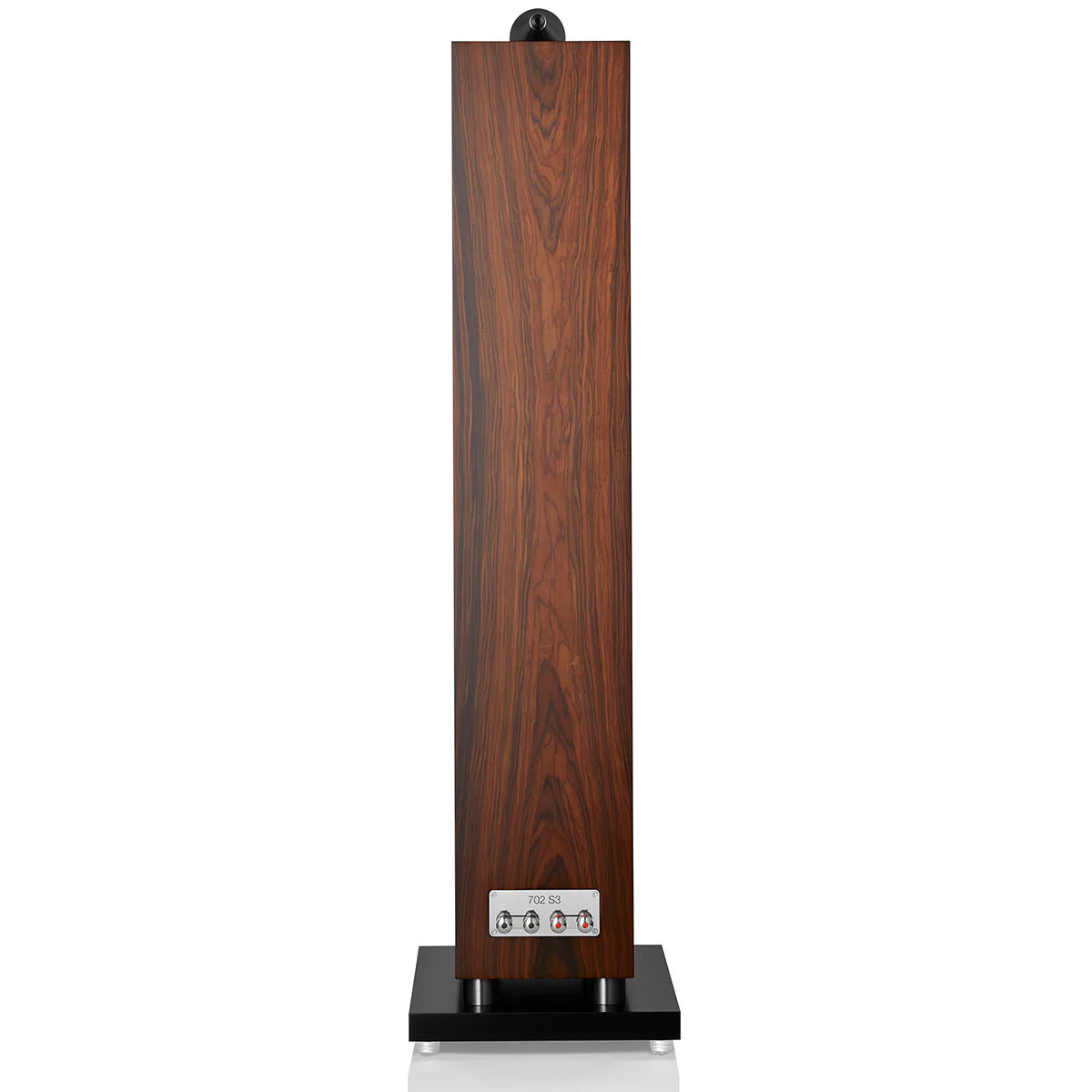

Bowers & Wilkins 702 S3

Solid Body Tweeter

The 700 Series features the latest generation of Bowers & Wilkins' iconic Solid Body Tweeter-on-Top housing. Its new, more elongated form incorporates a longer tubeloading system to produce an even more free and open sound with high frequencies. The carefully decoupled housing is milled from a single solid block of aluminium to better resist resonance.

Carbon dome tweeters

Carbon Dome tweeters are purpose-built for the 700 Series. Delivering a dramatic improvement on the aluminium double dome tweeter, they raise the breakup threshold to 47kHz, for pinpoint imaging accuracy and detail.

Biomimetic Suspension

The new Biomimetic Suspension, first seen on the 800 Series Diamond, revolutionises midrange cone performance by greatly reducing the unwanted air pressure and coloration that a conventional fabric spider can generate. The result? Midrange transparency you wouldn’t believe possible.

Continuum™ Cone

Thanks to its composite construction, the Continuum™ cone avoids the abrupt transitions in behaviour that can impair the performance of a conventional drive unit. The result is a more open, neutral performance that delivers voices and instruments with precision and transparency.

Decoupled Midrange Assembly

Every three-way loudspeaker in the new 700 Series has a dedicated midrange cone using four key Bowers & Wilkins technologies: the Continuum cone, FST™, Biomimetic Suspension and midrange decoupling, the latter ensuring minimal interference from the operation of the loudspeaker’s bass drivers.

Aerofoil™ Profile bass cone

Developed using advanced computer modeling techniques, the Aerofoil Profile bass cone has variable thickness, providing stiffness and rigidity where it’s needed most. The result: deep and dynamic bass.

Curved Baffle

The new 700 Series features a curved front baffle for the first time. This allows the midrange and bass drivers to be located in individual pod-type housings that sit proud of the speaker baffle. When combined with the curvature of the structure, this new approach – derived from the 800 Series Diamond – reduces the audible impact of the cabinet, creating a cleaner, more open and more immersive sound.

Technical Features:

• Decoupled Carbon Dome tweeter
• Solid Body Tweeter-on-Top
• Continuum™ cone FST™ midrange
• Decoupled midrange
• Aerofoil™ Profile bass cones
• Flowport™

Description: 3-way vented-box system

Drive Units:

• 1x ø25mm (1in) Decoupled Carbon Dome high-frequency
• 1x ø150mm (6in) Continuum cone FST midrange
• 3x ø165mm (6.5in) Aerofoil Profile bass

Frequency Range: 28Hz to 33kHz

Frequency Response: (+/-3dB from reference axis) 46Hz - 28kHz

Sensitivity: (on axis at 2.83Vrms at 1m) 90dB

Harmonic Distortion:

• 2nd and 3rd harmonics (90dB, 1m on axis)
• <1% 86Hz - 28kHz
• <0.5% 110Hz - 20kHz

Nominal Impedance:  8Ω (minimum 3.1Ω)

Recommended Amplifier Power: 30W - 300W into 8Ω on unclipped program

Dimensions:

• Height: 1010mm (39.8in) cabinet only, 1138mm (44.8in) including tweeter and plinth
• Width: 192mm (7.6in) cabinet only, 290mm (11.4in) including plinth
• Depth: 354mm (13.9in) cabinet only, 391mm (15.4in) including grille and terminals, 410mm (16.1in) including plinth

Net Weight: 20.5kg (45.3lbs)
