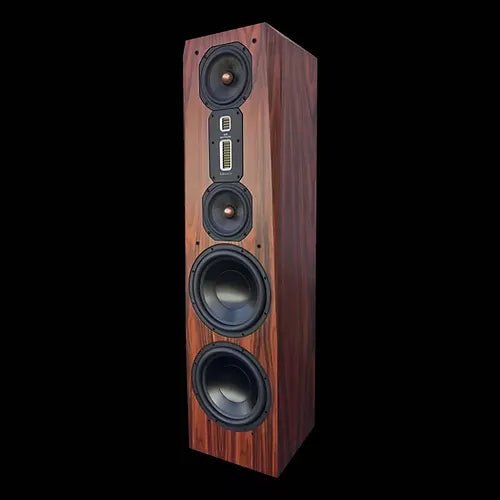

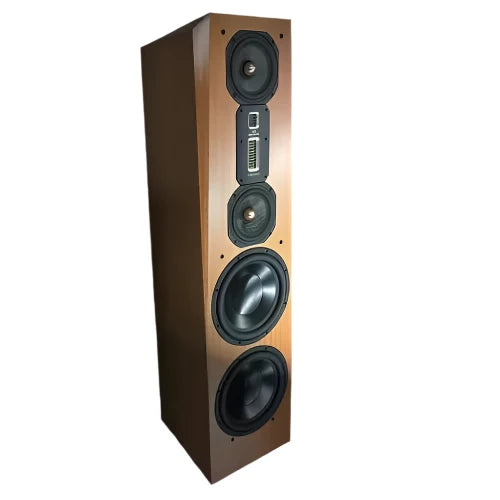

Focus XD Speakers From Legacy Audio

• Application: Configurable, Internally powered full range or bi-ampable tower with mastering grade clarity
• System Type: 6 driver, 4 way
• Tweeter: Dual Air Motion Tweeter System- 1" AMT Super Tweeter, Kimber silver HF wire
• Midrange: Dual Air Motion Tweeter System- 4" AMT Tweeter
• Midwoofer: Dual 7" Graphene-filled carbon fiber cone with cast frame
• Subwoofer: Dual 12" ultra-linear bass drivers with 15 lb motor
• Low Frequency Alignment: Assisted 6th order Butterworth, dual rear ported
• Inputs: 1 Pair binding posts for upper range, 1 XLR balanced for full range or bass section
• Internal Amplification: 750 Watt ICEpower amplifier
• Recommended Amplification: 1 channel of 10 watts minimum for bi-amping upper range
• Freq. Response (Hz, +/-2dB): 18-30kHz
• Impedance: 4 Ohm/ 10k amp Input
• Sensitivity: 95.4 dB (2.83V@1m)
• Crossover (Hz): 120, 2.8K, 8K
• Cabinet Dimensions HxWxD (inches): 55 x 14 x 15.375
• Weight: 141 Ibs
• Shipping Weight: 193 lbs

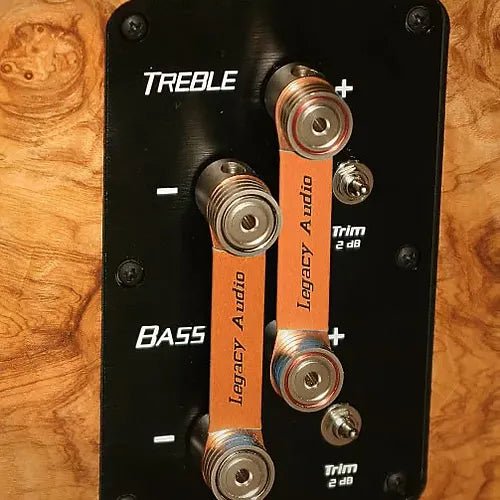

Experience the power and precision of the new Legacy Focus XD speaker system. Each tower is equipped with 750 watts of super low distortion ICEpower amplification, providing exceptional bi-amplification benefits such as reduced intermodulation, improved transients, greater dynamic range, and lower distortion. The versatile back panel offers multiple configurations, including active bi-amplification with the internal amplifier powering the woofers and an external amplifier for mids and highs, utilizing the Legacy Wavelet processor for breakthrough room correction.

The Focus XD features dual 12" ultra-linear bass drivers and the Legacy Dual AMT system found in the Focus SE, along with new dual 7" graphene-filled carbon fiber midranges. These midranges boast a massive magnetic structure, optimized copper phase-plug, and shorting ring for unparalleled performance. The dual 12" woofers deliver linear output with remarkable definition and rich upper bass, seamlessly transitioning to the lower midrange thanks to their 15 lb motor structure.

The cabinet of the Focus XD is stiffened and reinforced, progressively narrowing to eliminate potential standing waves. Driver tolerances are meticulously matched to ensure exceptional performance. While the Focus SE remains the top choice for passive full-range towers around $10k, the Focus XD represents the next level of advancement, incorporating over 30 years of continuous refinement. Elevate your listening experience with the Focus XD, where power, precision, and craftsmanship converge.

• Download the Focus XD Manual Here
