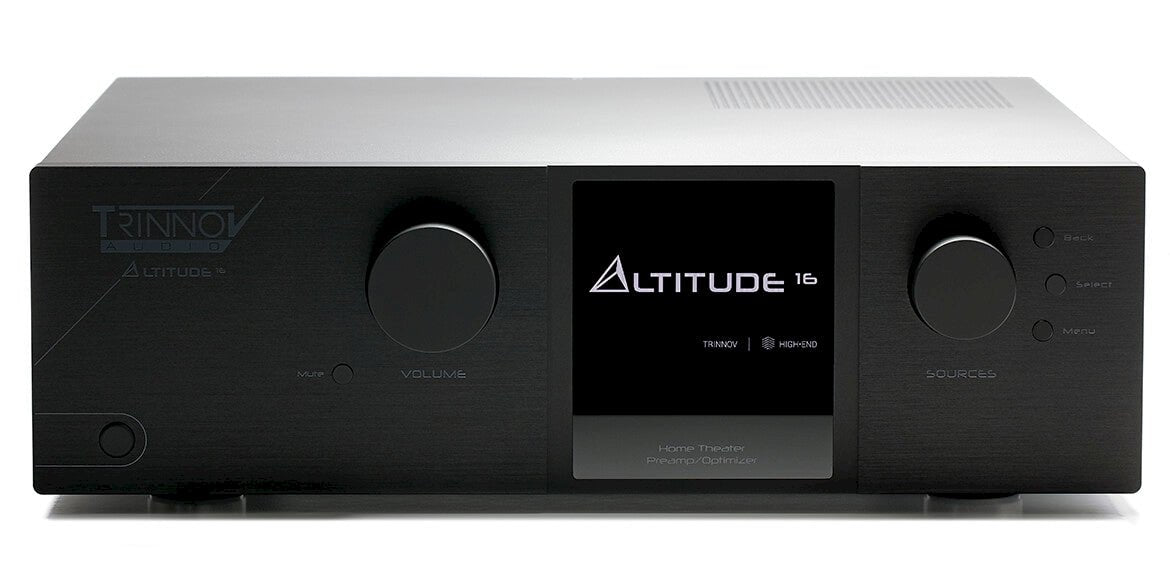

Trinnov Altitude16

Object-Based Decoding

• Dolby Atmos® Native Decoding & Upmix: Up to 20 discrete channels
• Auro-3D® Native Decoding & Upmix (Auromatic): Up to 13.1
• DTS:X® Pro: Up to 20 discrete channels
• Speaker Layouts Support: All
• IMAX Enhanced: Yes

HDMI Connectivity

• Output 1: HDMI 2.1 / HDCP 2.3
• Output 2: HDMI 2.1 / HDCP 2.3
• Inputs: 8
• HDR Support: HDR10, HDR10+, HLG, and Dolby Vision
• Maximum Resolution: 4K 120Hz / 8K 60Hz
• Maximum Bandwidth: 40Gbps on all inputs and outputs
• Frame Rates Supported: 4K (24/25/30/48/60/100/120), 8K (24/25/30/48/60)
• ARC / eARC: Available on Output 1
• OSD: Main information displayed on-screen

Digital Audio Connectivity

• S/PDIF Inputs: x4 (2 optical, 2 coaxial)
• S/PDIF Outputs: x2 (1 optical, 1 coaxial)
• +4 Outputs: By combining Analog and S/PDIF outputs
• Audio Network: Dual ports (for future use)

Analog Audio Connectivity

• Microphone Input: 1x 5-pin XLR for 3D Microphone
• Balanced Inputs: 1x Stereo XLR
• Unbalanced Inputs: 1x Stereo RCA
• Balanced Outputs: 16x XLR
• Input Impedance: 20k Ohms / 10k Ohms

Audio Processing

• Data Precision: 64 bits, floating point
• Max Sampling Rate: Native, up to 96kHz

Hardware

• Processor: Intel multi-core hyper-threaded
• ADC Resolution / Sampling Rate: 24 bits / 96 kHz
• DAC Resolution / Sampling Rate: 24 bits / 192 kHz
• A/D Signal-to-Noise Ratio: 119 dB (A-Weighted)
• D/A Signal-to-Noise Ratio: 118 dB (A-Weighted)
• Reference Level: +18dBu @ 0dBFS (Balanced)
• Clock / Jitter: Attenuation > 50 dB above 100Hz
• Cooling System: Custom heat sinks + additional silent fans
• Safety Components: AntiPop relays on each output

Power Supply

• Power Requirement: 100 - 240V (auto-selecting)
• Power Consumption: 76W Max
• Thermal Conversion: 260 BTU/h Max
• Mains Fuse: 2x 1A slow blow
• Internal PSUs: Separate supplies for Audio and Processing

Weight & Dimensions

• Dimensions (W x H x D):
• Shipping Dimensions (L x H x P): 74 x 59 x 30 cm
• Weight: 11.30 kg / 24.9 lbs
• Shipping Weight / Volume: 18.2 kg / 0.131 m³
• Rackmounting: 3U - Rack Ears Included

Warranty

• Standard Warranty: 5 years
• Transferable: Yes
