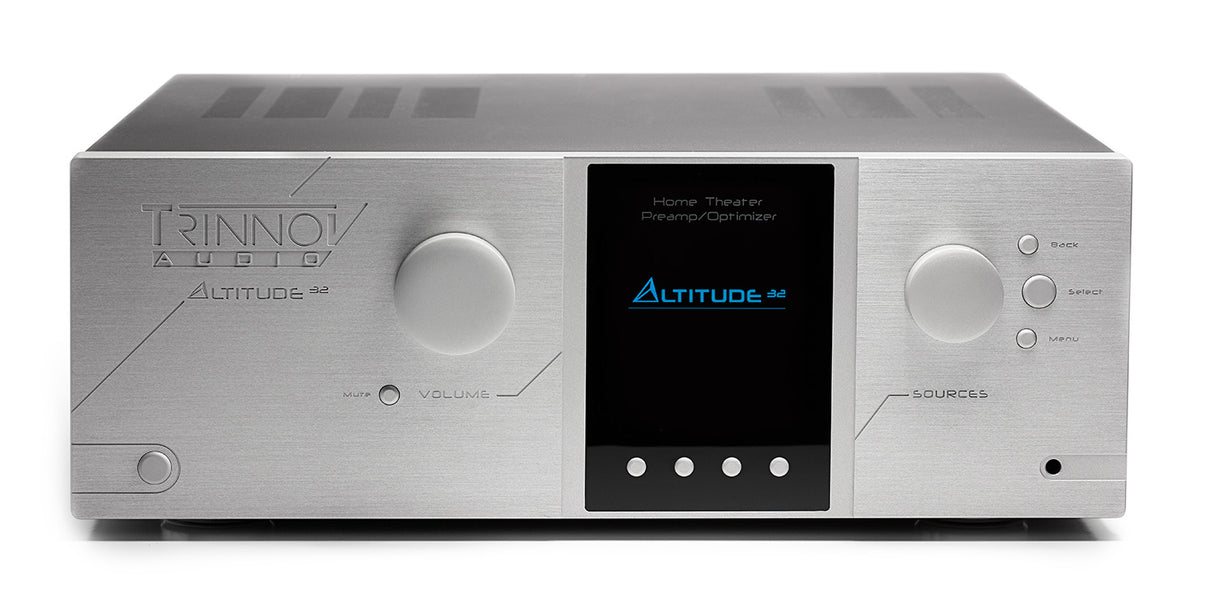

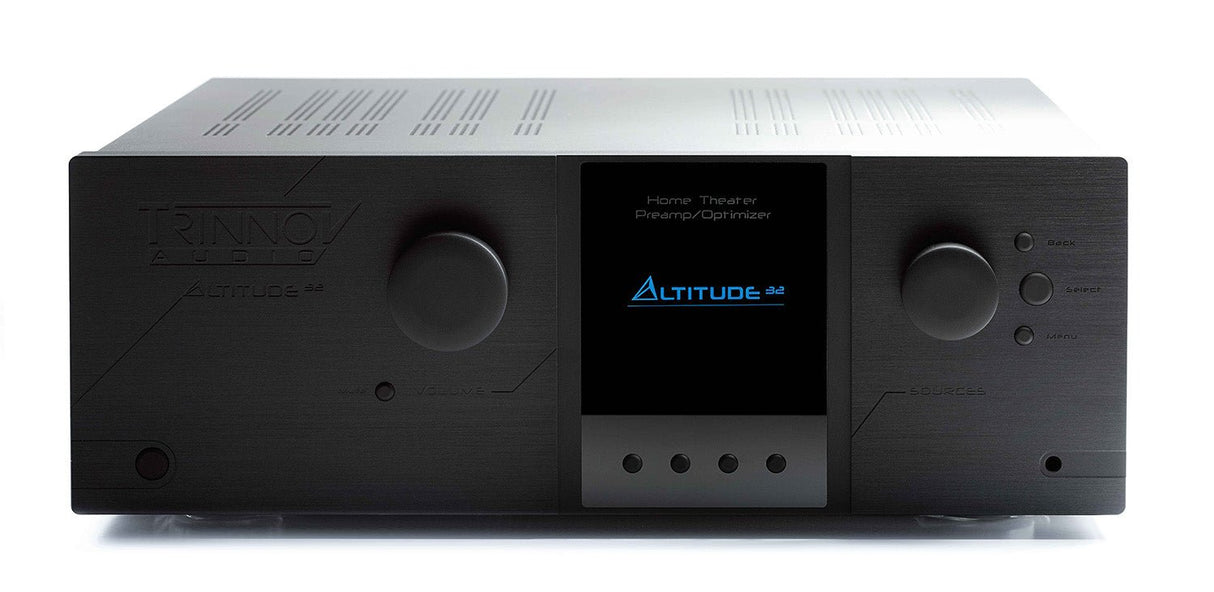

Trinnov Altitude32

Object-Based Decoding (All Versions)

• Dolby Atmos® Native Decoding & Up-mix: Up to 34 discrete channels
• Auro-3D® Native Decoding & Up-mix (Auromatic): Up to 13.1
• DTS:X® Pro Native Decoding & Up-Mix: Up to 30.2
• Speaker Layouts Support: All
• IMAX Enhanced: Yes

Channel-Based Audio Decoding

• Dolby: Digital®, Digital Plus®, TrueHD®
• DTS: Digital Surround®, High Res Audio®, HD Master Audio®
• PCM: Up to 24 bits / 192 kHz
• Roon: Yes

Channel Capabilities

• Max Channels:
• Max Optimizer Channels:
• Max Subwoofers:
• Max Crossovers (2/3/4 way):
• Full Input / Output Matrix: Yes
• Configuration Presets: 29

HDMI Connectivity

• Outputs:
• Inputs: 8
• Maximum Resolution: 4K 120Hz / 8K 60Hz
• Maximum Bandwidth: 40 Gbps on all inputs and outputs
• Frame Rates Supported: 4K (24/25/30/48/60/100/120), 8K (24/25/30/48/60)
• ARC / eARC: Available on Output 1
• OSD: Main information displayed on-screen
• HDR Support: HDR10, HDR10+, HLG, and Dolby Vision

Digital Audio Connectivity

• S/PDIF Inputs: 4 (2 optical, 2 coaxial)
• S/PDIF Outputs: 2 (1 optical, 1 coaxial)
• AES3 Inputs (XLR): 2
• AES3 Outputs (XLR): 1
• AES3 Outputs (DB25):
• AES3 Input Compliance: DCI
• Audio Network: Dual ports (for future use)

Analog Audio Connectivity

• Microphone Input: 1x 5 Pin XLR for 3D Microphone
• Balanced Inputs: 2x Stereo XLR
• Unbalanced Inputs:
• Balanced Outputs:
• Unbalanced Outputs: 1x Stereo RCA
• DB25 Analog Outputs:

Audio Processing

• Data Precision: 64 bits, floating point
• Max Sampling Rate (up to 24 channels): Native, up to 192kHz
• Max Sampling Rate (up to 32 channels with +4 option): Native, up to 96kHz
• Max Sampling Rate (above 24 channels): Native, up to 96kHz
• Max Sampling Rate (above 32 channels): Native, up to 48kHz

Hardware

• Processor: Intel multi-core hyper-threaded
• ADC Resolution / Sampling Rate: 24 bits / 96 kHz
• DAC Resolution / Sampling Rate: 24 bits / 192 kHz
• A/D Signal-To-Noise Ratio: 119 dB (A-Weighted)
• D/A Signal-To-Noise Ratio: 118 dB (A-Weighted)
• Reference Level: +18dBu @ 0dBFS (Balanced)
• Clock / Jitter: Attenuation > 50 dB above 100Hz
• Cooling System: Custom heat sinks & silent fans
• Safety Components: Anti-pop relays on each output

Power Supply

• Power Requirement: 240V / 110V - 50 / 60Hz (Manual Switch)
• Power Consumption: 132W Max
• Thermal Conversion: 450 BTU/h Max
• Mains Fuse: 2A Slow Blow
• Internal PSUs: Separate supplies for audio and processing

Weight & Dimensions

• Dimensions (W x H x D):
• Shipping Dimensions (L x H x P): 74 x 59 x 30 cm
• Weight: 14.5 kg / 32 lbs
• Shipping Weight / Volume: 22.2 kg / 0.131M³
• Rackmounting: 3.5U - Rack Ears Included

Warranty

• Standard Warranty: 5 years
• Transferable: Yes
• Warranty Extension Program: Yes

Chassis

• Standard Color: Black
• Optional Color: Silver
